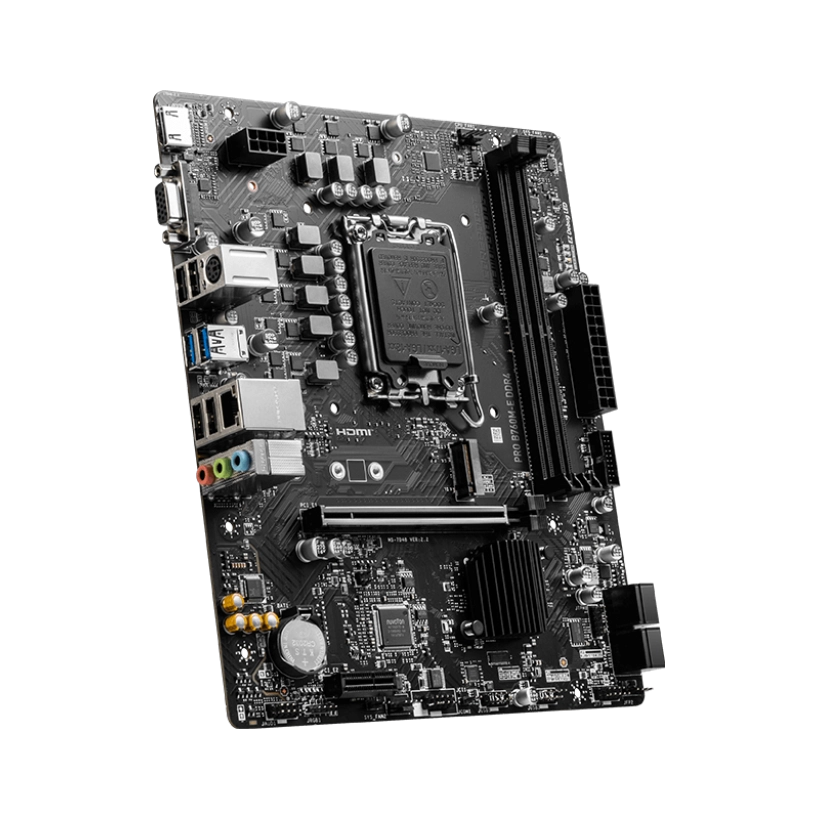

MSI PRO B760M-E, LGA1700, Intel 14th/13th/12th Gen Support, DDR4

The MSI PRO B760M-E motherboard is a compact and versatile micro-ATX motherboard, perfect for budget-conscious builders and enthusiasts. Powered by the Intel B760 chipset, it supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, offering the flexibility to build an efficient system.

With features like Lightning Gen4 PCIe and M.2 storage, the PRO B760M-E ensures faster transfer speeds for your storage and graphics. Memory Boost technology and support for up to 64GB of DDR4 RAM ensure reliable performance, while Core Boost delivers stable power to handle multi-core CPUs. Troubleshooting is made simple with EZ Debug LED, and Frozr AI Cooling adjusts fan speeds intelligently to keep your system cool and quiet.

Whether you’re building for everyday use, work, or light gaming, the MSI PRO B760M-E combines quality, performance, and ease of use in a compact mATX form factor.

Key Features

• Supports Intel 14th/13th/12th Gen Core™, Pentium Gold, and Celeron processors.
• DDR4 memory compatibility, up to 64GB, with speeds up to 4800MHz (OC).
• Lightning Gen4 PCIe and M.2 solution for faster transfer speeds.
• EZ Debug LED makes troubleshooting simple and hassle-free.
• Core Boost technology for stable power delivery to multi-core CPUs.
• Frozr AI Cooling automatically adjusts fan speeds based on CPU and GPU temps.
• Audio Boost technology provides immersive studio-grade sound.
• PCIe Steel Armor prevents GPU bending and protects against EMI.
• Compact micro-ATX form factor, ideal for space-saving builds.

MSI PRO B760M-E Motherboard Specifications

• Brand: MSI
• Model: PRO B760M-E
• Socket: LGA 1700
• Chipset: Intel B760
• Memory Support: DDR4 (up to 4800MHz OC), 2 DIMM slots, max 64GB
• Graphics Outputs: HDMI 1.4 (4K@30Hz), VGA (2048×1536@50Hz)
• Expansion Slots: 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Storage: 1 PCIe 4.0 M.2, 4 SATA 6Gb/s
• Networking: Realtek RTL8111H Gigabit LAN
• Audio: Realtek ALC897 Codec, 7.1-channel HD audio
• USB Ports: 4 USB 2.0 (rear), 4 USB 2.0 (front), 2 USB 5Gbps Type-A (rear), 2 USB 5Gbps Type-A (front)
• Cooling: Frozr AI Cooling, 1 CPU fan header, 2 system fan headers
• Power Requirements: 24-pin ATX power connector, 8-pin CPU power connector
• Operating System Support: Windows 11 64-bit, Windows® 10 64-bit
• Form Factor: micro-ATX (200mm x 236.16mm)

Processor Compatibility

The MSI PRO B760M-E motherbooard supports Intel 14th/13th/12th Gen processors, offering excellent performance for multitasking, gaming, or office applications. The Core Boost design ensures stable power delivery for CPUs with higher core counts, enabling smooth and reliable operation.

Recommended Processors

• For Gamers: Intel Core  i5-13600K – Excellent performance at an affordable price point.
• For Creators: Intel Core i7-13700K – Ideal for video editing, 3D rendering, and content creation.
• For Budget Builds: Intel Core i3-12100F – A great entry-level option for everyday tasks.

Memory Compatibility

This motherboard supports DDR4 memory with speeds up to 4800MHz (OC). It features dual-channel mode with 2 DIMM slots, allowing a maximum capacity of 64GB.

The XMP support ensures easy overclocking, while compatibility with both non-ECC and unbuffered DIMMs ensures flexibility for various system configurations.

Discrete Graphics Compatibility

The PCIe 4.0 x16 slot is built to support modern GPUs, ensuring high performance for gaming and creative tasks. It is compatible with:

• NVIDIA RTX 40 Series GPUs (e.g., RTX 4060, RTX 4070).
• AMD Radeon RX 6000 Series GPUs (e.g., RX 6600 XT, RX 6700 XT).

For budget builds, pairing the MSI PRO B760M-E motherboard with NVIDIA GTX 1650 or AMD RX 6500 XT offers excellent value.

Storage and Expansion

The MSI PRO B760M-E features:

• 1 M.2 slot (PCIe 4.0 x4) for high-speed NVMe SSDs.
• 4 SATA 6Gb/s connectors for traditional SSDs and HDDs.
• RAID support for both M.2 and SATA drives, with configurations for RAID 0, 1, 5, and 10.

The M.2 slot supports 2280/2260/2242 devices in PCIe 4.0 or SATA modes, and the EZ Debug LED helps identify issues during setup.

Power Requirements and Cooling

The motherboard requires:

• 24-pin ATX power connector for the board.
• 8-pin CPU power connector for stable power delivery to the processor.

Frozr AI Cooling intelligently detects CPU and GPU temperatures, adjusting fan speeds automatically for quieter and more efficient cooling. Additionally, the motherboard includes:

• 1 CPU fan header.
• 2 system fan headers.

Is This Motherboard for You?

The MSI PRO B760M-E motherboard is an excellent choice for budget-friendly builds that don’t compromise on essential features. With DDR4 support, PCIe 4.0, M.2 Gen4 storage, and a compact mATX design, it’s perfect for gamers, home users, and office setups.

Whether you’re a first-time builder or a seasoned PC enthusiast, this motherboard offers incredible value and reliability for a wide range of applications.
