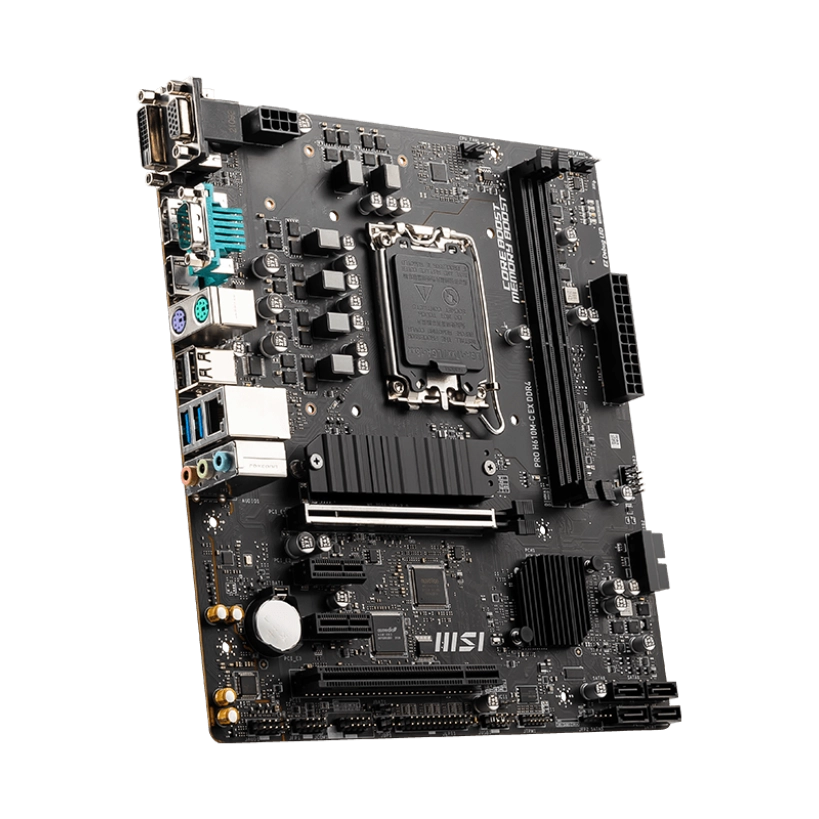

MSI PRO H610M-C EX, LGA1700, Supports Intel 13th and 12th Gen

The MSI PRO H610M-C EX motherboard is a compact and feature-packed board built on the Intel H610 chipset, providing excellent compatibility with the latest Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors. It comes equipped with PCIe 4.0 technology, dual-channel DDR4 support, and a built-in M.2 Shield FROZR to ensure stable and efficient operation for your storage devices.

With features like EZ Debug LED for hassle-free troubleshooting and Frozr AI Cooling, which automatically adjusts fan speeds based on CPU and GPU temperatures, this motherboard is optimized for both convenience and performance. It also boasts Audio Boost technology to enhance sound quality for a more immersive experience, whether you’re gaming, streaming, or working.

Designed with reliability in mind, the MSI PRO H610M-C EX is a durable motherboard that delivers consistent performance for home, office, and light gaming builds.

Key Features

• Processor Compatibility: Supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• PCIe 4.0 Support: The primary PCIe x16 slot supports PCIe 4.0 for high-performance GPUs.
• M.2 Storage with Shield FROZR: Includes a PCIe 3.0 x4 M.2 slot with a built-in thermal solution to prevent throttling and boost SSD performance.
• Memory Support: Dual-channel DDR4 with speeds up to 3200MHz and a maximum capacity of 64GB.
• Integrated Graphics Outputs: HDMI 2.1, DisplayPort 1.4, VGA, and DVI-D ports, capable of delivering resolutions up to 4K@60Hz (depending on the CPU).
• Comprehensive Cooling: Features Frozr AI Cooling for dynamic fan speed adjustments and stable thermal management.
• Networking: Realtek 1Gbps LAN for reliable and fast wired connectivity.
• Audio Boost: Realtek ALC897 codec with 7.1-channel high-definition audio for premium sound quality.

MSI PRO H610M-C EX Specifications

• Brand: MSI
• Model: PRO H610M-C EX
• Socket Type: LGA1700
• Chipset: Intel H610
• Processor Compatibility: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• Memory Support: 2 x DDR4 DIMM slots, up to 64GB, speeds up to 3200MHz.
• Graphics Outputs: HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), VGA, and DVI-D ports.
• Expansion Slots: 1 PCIe 4.0 x16 slot, 2 PCIe 3.0 x1 slots, 1 legacy PCI slot.
• Storage Interface: 1 x M.2 slot (PCIe 3.0 x4 and SATA), 4 x SATA 6Gb/s ports.
• USB Ports: Rear – 2 x USB 3.2 Gen 1, 2 x USB 2.0; Internal – 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0 headers.
• Networking: Realtek RTL8111H 1Gbps LAN.
• Audio: Realtek ALC897 codec, 7.1-channel high-definition audio.
• Cooling Features: 1 CPU fan connector, 1 system fan connector, and Frozr AI Cooling.
• Form Factor: Micro-ATX (24.4 cm x 22 cm).
• Operating System Support: Windows 10 64-bit.

Processor Compatibility

The MSI PRO H610M-C EX motherboard supports a wide range of Intel processors, from entry-level options to powerful performance CPUs, ensuring versatility for different builds. Its LGA 1700 socket is compatible with:

• Intel 10th Gen Processors: While not supported, those seeking upgrade pathways from older systems can look to the latest Intel generations this motherboard supports.
• Intel 12th Gen Alder Lake CPUs: From efficient Pentium and Celeron options to mid-tier i5 and high-performance i7 and i9 processors. Ideal for budget and mid-range builds.
• Intel 13th Gen Raptor Lake CPUs: Fully supported, enabling access to the latest technology for enhanced multitasking and gaming performance.

Recommended Processors for MSI PRO H610M-C EX

• Intel Core i3-12100F: A budget-friendly quad-core CPU perfect for entry-level gaming and productivity.
• Intel Core i5-13500: Excellent for balanced workloads, including gaming, streaming, and office applications.

Discrete GPU Compatibility

The MSI PRO H610M-C EX motherboard features a PCIe 4.0 x16 slot, ensuring compatibility with the latest graphics cards. While PCIe 4.0 offers substantial bandwidth improvements over PCIe 3.0, older PCIe 3.0 GPUs remain compatible, albeit with reduced bandwidth efficiency.

• PCIe 4.0 GPUs: Leverage the high bandwidth for optimal performance in gaming and productivity applications.
• PCIe 3.0 GPUs: While fully compatible, they may experience slight performance bottlenecks when paired with bandwidth-intensive applications.

Recommended Graphics Cards MSI PRO H610M-C EX

• NVIDIA GeForce RTX 3060 Ti: Perfect for 1440p gaming with ray tracing capabilities.
• AMD Radeon RX 6600 XT: Ideal for 1080p high refresh rate gaming with efficient power consumption.

Memory Compatibility

The motherboard supports DDR4 memory across its two DIMM slots, with a maximum capacity of 64GB. It offers compatibility with speeds up to 3200 MHz (OC) and includes support for Intel XMP profiles for easy memory overclocking.

Overclocking Limitations: While the motherboard allows minor memory overclocking, it is not designed for extensive overclocking capabilities due to its chipset limitations.

Power Requirements and Cooling

The MSI PRO H610M-C EX motherboard features a 24-pin ATX main power connector and an 8-pin CPU power connector, ensuring stable power delivery for Intel 12th and 13th Gen CPUs. For cooling, it includes:

• 1 x CPU fan header: Ensures your processor runs at optimal temperatures during heavy workloads.
• 2 x System fan headers: Supports additional case fans to improve airflow and overall thermal performance.

VRM Cooling: The motherboard’s VRM is designed to handle moderate workloads efficiently, but pairing it with a well-ventilated case ensures long-term reliability.

Recommended Power Supply Units for MSI PRO H610M-C EX

• 550W PSU: Ideal for builds using mid-tier GPUs like the NVIDIA RTX 3060 or AMD RX 6600 XT.
• 650W PSU: Recommended for systems with higher power demands, including overclocked CPUs or more powerful GPUs.

Storage Options and Connectivity

The MSI PRO H610M-C EX motherboard offers ample storage and connectivity options, making it a versatile choice for entry-level builds.

• M.2 Slots: Includes a single PCIe 3.0 M.2 slot, perfect for NVMe SSDs for fast boot times and application loading.
• SATA Ports: Four SATA 6Gb/s ports are available for additional SSDs or HDDs.

Connectivity:

• Rear I/O includes USB 3.2 Gen 1 Type-A ports, USB 2.0, HDMI, VGA, and a LAN port for Realtek Gigabit Ethernet.
• Internal connectors support front-panel USB and audio for added convenience.

Is This Motherboard Right for You?

The MSI PRO H610M-C EX motherboard is a practical solution for budget-conscious users seeking a reliable motherboard with modern features. It’s ideal for entry-level builds, office systems, and light gaming setups. With PCIe 4.0 support, a robust M.2 thermal solution, and a variety of connectivity options, this motherboard ensures a smooth and efficient computing experience.

Whether you’re building a compact PC for work or an affordable gaming rig, the MSI PRO H610M-C EX offers exceptional value without compromising on essential features.
