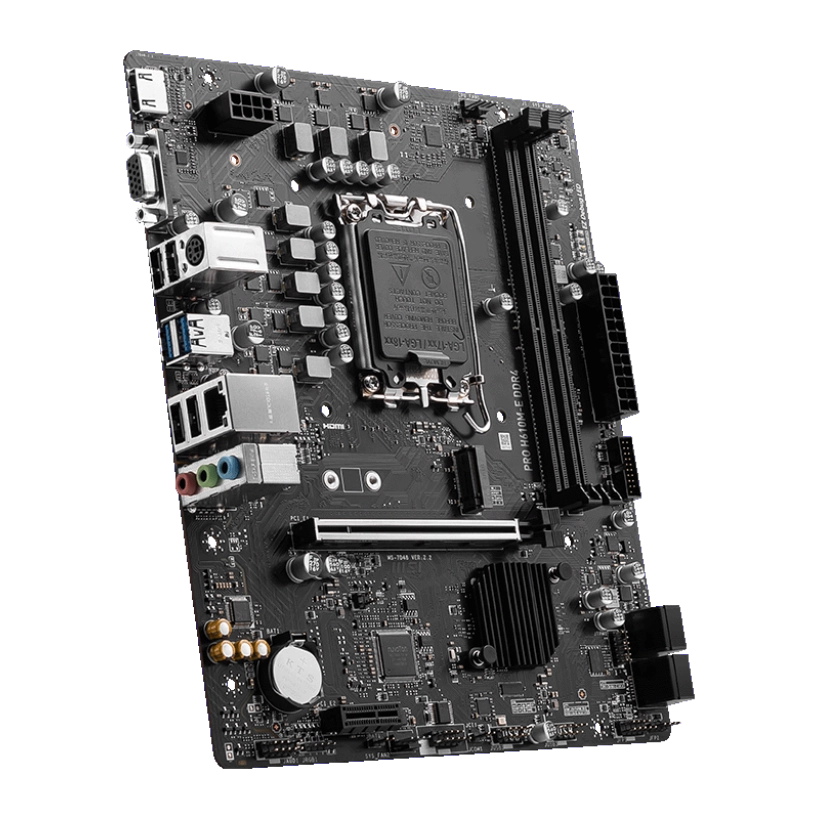

MSI PRO H610M-E, LGA1700, Supports Intel 13th/12th Gen, DDR4

The MSI PRO H610M-E motherboard is a compact solution that combines affordability with essential features for modern computing. Powered by the Intel H610 chipset, it supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors. Its Lightning Gen4 PCIe technology provides up to 64GB/s bandwidth for ultra-fast data transfer, while Core Boost technology ensures optimal power delivery for multi-core processors.

Equipped with dual DDR4 slots supporting up to 64GB of memory, the MSI PRO H610M-E is designed for reliable performance in multitasking and productivity workloads. It also features a PCIe 3.0 x4 M.2 slot for high-speed SSDs and supports multiple SATA ports for additional storage options. Frozr AI Cooling dynamically manages fan speeds based on CPU and GPU temperatures, ensuring efficient heat dissipation and stable operation.

With EZ Debug LED for troubleshooting, Audio Boost technology for enhanced sound quality, and versatile connectivity options, the MSI PRO H610M-E is ideal for home or office PCs and light gaming builds.

Key Features

• Processor Compatibility: Supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• PCIe 4.0 Support: Provides high-speed data transfer for modern GPUs and storage devices.
• M.2 SSD Support: Includes one PCIe 3.0 x4 M.2 slot for faster boot and load times.
• Memory Support: Dual-channel DDR4 slots with speeds up to 3200MHz and a maximum capacity of 64GB.
• Onboard Graphics Outputs: HDMI 1.4 (4K@30Hz) and VGA ports for integrated graphics support.
• Enhanced Cooling: Frozr AI Cooling adjusts fan speeds automatically for efficient thermal management.
• Networking: Realtek 1Gbps LAN for stable and fast internet connectivity.
• Audio Boost: High-quality audio powered by the Realtek ALC897 codec for immersive sound.

MSI PRO H610M-E Specifications

• Brand: MSI
• Model: PRO H610M-E
• Socket Type: LGA1700
• Chipset: Intel H610
• Processor Compatibility: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• Memory Support: 2 x DDR4 DIMM slots, up to 64GB, speeds up to 3200MHz.
• Graphics Outputs: HDMI 1.4 (4K@30Hz) and VGA ports.
• Expansion Slots: 1 PCIe 4.0 x16 slot, 1 PCIe 3.0 x1 slot.
• Storage Interface: 1 PCIe 3.0 x4 M.2 slot, 4 SATA 6Gb/s ports.
• USB Ports: Rear – 2 x USB 3.2 Gen 1, 2 x USB 2.0; Internal – 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers.
• Networking: Realtek RTL8111H 1Gbps LAN.
• Audio: Realtek ALC897 codec, 7.1-channel high-definition audio.
• Cooling Features: 1 CPU fan header, 2 system fan headers, and Frozr AI Cooling.
• Form Factor: Micro-ATX (23.6 cm x 20 cm).
• Operating System Support: Windows 10 64-bit, Windows 11 64-bit.

Processor Compatibility

The MSI PRO H610M-E motherboard supports Intel processors, making it versatile for entry-level and mid-tier builds. Designed with the LGA 1700 socket, it provides compatibility across multiple Intel generations, ensuring excellent upgrade paths and performance for various workloads.

• Intel 12th Gen Alder Lake Processors: Supports a wide range of CPUs, from entry-level Pentium Gold and Celeron processors to powerful Core i5, i7, and i9 models. These CPUs leverage the H610 chipset’s stable performance for gaming, productivity, and general use.
• Intel 13th Gen Raptor Lake Processors: Provides full compatibility with the latest Intel CPUs, offering increased core counts and better power efficiency.

Recommended Processors for MSI PRO H610M-E

• Intel Core i3-12100: A quad-core CPU perfect for budget gaming and general multitasking.
• Intel Core i5-13400: A mid-tier option offering excellent value for gaming and productivity tasks.

Discrete GPU Compatibility

The MSI PRO H610M-E motherboard features a PCIe 4.0 x16 slot, which is compatible with modern GPUs. PCIe 4.0 offers double the bandwidth of PCIe 3.0, making it suitable for current-generation graphics cards.

PCIe Compatibility Notes:

• PCIe 4.0 GPUs: Operate at full speed, ensuring optimal performance for gaming, video editing, and other GPU-intensive applications.
• PCIe 3.0 GPUs: Fully compatible, but performance may be limited due to reduced bandwidth, which could slightly impact high-end workloads.

Recommended Graphics Cards for MSI PRO H610M-E

• NVIDIA GeForce RTX 3050: Affordable and efficient for 1080p gaming and entry-level content creation.
• AMD Radeon RX 6600 XT: A strong contender for 1080p gaming with excellent value and low power consumption.

Memory Compatibility

The MSI PRO H610M-E motherboard supports DDR4 memory and is designed to handle a wide range of frequencies and configurations. It features two DIMM slots with a maximum capacity of 64GB, making it ideal for general workloads and light multitasking.

• Supported Speeds: Base frequencies up to 3200MHz.
• Overclocking Limitations: While the motherboard supports Intel XMP profiles for memory tuning, the H610 chipset lacks advanced overclocking capabilities, restricting users to basic optimizations.

Power Requirements and Cooling

The motherboard includes reliable power delivery and cooling options, making it an excellent choice for entry-level and budget builds.

Power Connectors:

• 24-pin ATX main power connector: Provides stable power to the motherboard.
• 8-pin CPU power connector: Ensures adequate power delivery for supported Intel processors, including 13th Gen CPUs.

Cooling Options:

• 1 x CPU fan header: Maintains optimal temperatures for the processor during heavy workloads.
• 1 x System fan header: Allows for an additional fan to improve overall airflow and thermal management.
• VRM Cooling: The VRM is designed for entry-level performance but benefits from adequate case airflow to ensure long-term stability and efficiency.

Recommended Power Supplies for MSI PRO H610M-E

• 450W PSU: Ideal for builds with mid-range GPUs such as the NVIDIA RTX 3050.
• 550W PSU: Suitable for systems with more demanding GPUs like the AMD RX 6600 XT, providing ample headroom for future upgrades.

Storage Options and Connectivity

The MSI PRO H610M-E motherboard offers a mix of fast storage and flexible connectivity options to meet the needs of everyday users and light gaming builds.

Storage:

• M.2 Slot: Includes a PCIe 3.0 M.2 slot for NVMe SSDs, ensuring fast boot times and quick data access.
• SATA Ports: Four SATA 6Gb/s ports for additional SSDs or HDDs, ideal for larger storage arrays.

Connectivity:

• Rear I/O includes multiple USB 3.2 Gen 1 and USB 2.0 ports for peripherals.
• Audio jacks, VGA, HDMI, and Ethernet for comprehensive connectivity.
• Internal headers for front-panel USB and audio.

The MSI PRO H610M-E motherboard offers a solid foundation for affordable PC builds with reliable storage and essential connectivity features.

Is This Motherboard Right for You?

The MSI PRO H610M-E is an excellent choice for users looking for a reliable, budget-friendly motherboard for home or office use. Its support for PCIe 4.0, high-speed M.2 SSDs, and Intel’s latest processors makes it suitable for a variety of tasks, from productivity to light gaming.

If you’re building a compact, cost-effective PC that doesn’t compromise on essential features, the MSI PRO H610M-E delivers great value.
