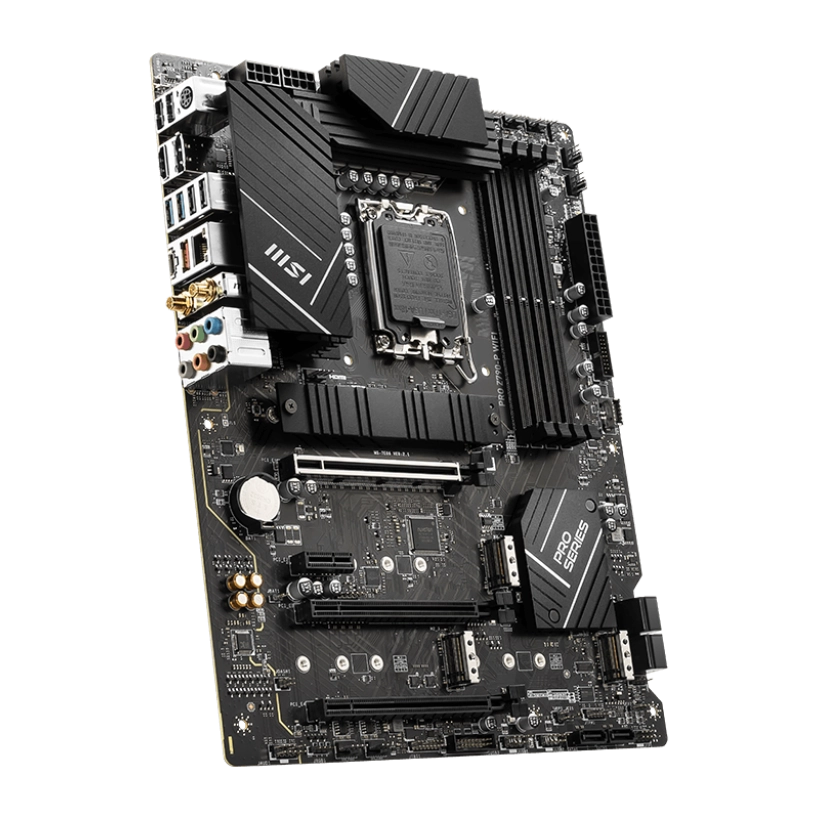

MSI PRO Z790-P WIFI, LGA1700, Intel 14th/13th/12th Gen, DDR5

The MSI PRO Z790-P WIFI ddr5 motherboard is engineered to deliver outstanding performance and reliability for power users and professionals. Built on the Intel Z790 chipset, it supports Intel 14th, 13th, and 12th Gen processors, enabling high-performance computing for gaming, content creation, and multitasking.

Equipped with DDR5 memory support and speeds up to 7000MHz (OC), this motherboard provides cutting-edge performance for demanding applications. PCIe 5.0 x16 support ensures compatibility with the latest GPUs, while four PCIe 4.0 M.2 slots and M.2 Shield FROZR ensure ultra-fast storage with optimal thermal management. Networking capabilities include Wi-Fi 6E and Intel® 2.5G LAN, providing fast and stable connections for seamless online gaming or productivity.

With features like Lightning USB 20G, EZ Debug LED, and Frozr AI Cooling, the MSI PRO Z790-P WIFI is a perfect choice for users building a powerful and future-ready PC.

Key Features

• Supports Intel 14th/13th/12th Gen Core™, Pentium® Gold, and Celeron® processors.
• DDR5 memory compatibility with up to 256GB and speeds up to 7000MHz (OC).
• PCIe 5.0 x16 slot offers unmatched GPU bandwidth for next-gen gaming and rendering.
• Four PCIe 4.0 M.2 slots with M.2 Shield FROZR for ultra-fast and secure storage.
• Wi-Fi 6E and Intel® 2.5G LAN ensure high-speed and reliable network performance.
• Lightning USB 20G (USB 3.2 Gen 2×2 Type-C) delivers 20Gbps data transfer speeds.
• Extended Heatsink Design and 6-layer PCB with 2oz copper enhance thermal performance and stability.
• EZ Debug LED simplifies troubleshooting during system setup.
• Frozr AI Cooling dynamically adjusts fan speeds based on system temperatures.
• ATX form factor, ideal for high-performance gaming or professional builds.

MSI PRO Z790-P WIFI DDR5  Specifications

• Brand: MSI
• Model: PRO Z790-P WIFI
• Socket: LGA1700
• Chipset: Intel Z790
• Memory Support: DDR5, up to 7000MHz (OC), 4 DIMM slots, maximum 256GB
• Graphics Outputs: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz)
• Expansion Slots: 1 PCIe 5.0 x16 (from CPU), 1 PCIe 4.0 x4 (from chipset), 1 PCIe 3.0 x1 (from chipset), 1 PCIe 3.0 x1 (from chipset)
• Storage: 4 PCIe 4.0 M.2 slots (up to 22110), 6 SATA 6Gb/s ports, RAID support for M.2 NVMe and SATA devices: RAID 0, 1, 5, and 10
• Networking: Intel 2.5G LAN, Intel Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek ALC897 Codec, 7.1-channel high-definition audio, supports S/PDIF out
• USB Ports (Rear): 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 20Gbps Type-C
• USB Ports (Front): 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
• Cooling: 1 CPU fan header, 1 pump fan header, 6 system fan headers
• Power Requirements: 24-pin ATX power connector, 8-pin + 4-pin CPU power connectors
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: ATX (243.84mm x 304.8mm)

Processor Compatibility

The MSI PRO Z790-P WIFI DDR5 Motherboard is built to support Intel processors from 12th Gen to 14th Gen, offering wide compatibility for a variety of performance needs. From budget builds to high-performance configurations, this motherboard delivers exceptional flexibility for gamers, creators, and professionals.

Supported Intel Generations

• 12th Gen (Alder Lake): Introduced hybrid architecture with P-cores and E-cores for optimized performance.
• 13th Gen (Raptor Lake): Enhanced core counts and better multitasking capabilities for gaming and productivity.
• 14th Gen: The latest generation, delivering unmatched performance for demanding workloads and cutting-edge gaming experiences.

Processor Recommendations for MSI PRO Z790-P WIFI DDR5

• Intel Core i3-12100F: A cost-effective choice for entry-level gaming or basic tasks.
• Intel Core i7-13700K: A versatile processor for gamers and professionals needing balanced performance.
• Intel Core i9-14900KF: Best suited for enthusiasts and creators requiring top-tier performance and overclocking potential.

Ready to build your dream PC? Choose the right Intel processor to unleash the power of the MSI PRO Z790-P WIFI DDR5!

Discrete GPU Compatibility

This motherboard features PCIe 5.0 support, ensuring compatibility with the latest GPUs and delivering double the bandwidth of PCIe 4.0. While PCIe 4.0 and PCIe 3.0 GPUs are backward compatible, utilizing a PCIe 5.0 slot ensures maximum future-proofing for graphics performance.

PCIe Compatibility Insights

• PCIe 5.0 GPUs: Fully compatible and ideal for this motherboard, offering unparalleled speeds and efficiency.
• PCIe 4.0 GPUs: Work seamlessly with minor performance differences, making them a solid choice for most gamers.
• PCIe 3.0 GPUs: Compatible but may limit performance in demanding tasks due to reduced bandwidth.

Graphics Card Recommendations for MSI PRO Z790-P WIFI DDR5

• AMD Radeon RX 7600: Excellent for 1080p gaming with PCIe 4.0 support.
• NVIDIA GeForce RTX 4070 Ti: Perfect for 1440p or 4K gaming, delivering cutting-edge ray tracing and DLSS performance.
• NVIDIA GeForce RTX 4090: The ultimate choice for gamers and creators requiring unmatched 4K gaming and productivity power.

Upgrade your graphics today—pair your system with the ideal GPU for a powerful experience!

Memory Compatibility

The MSI PRO Z790-P WIFI DDR5 Motherboard embraces the latest DDR5 memory technology, offering remarkable speed, efficiency, and performance enhancements over DDR4. It ensures stable and reliable memory support for multitasking, gaming, and heavy workloads.

Key Memory Features

• Four DDR5 DIMM Slots: Supports up to 128GB of total memory capacity for extensive multitasking.
• Supported Speeds: Overclocking up to DDR5 7200 MHz (OC) ensures blazing-fast data transfers.
• Dual-Channel Memory Architecture: Maximizes performance with efficient data processing.
• Intel XMP 3.0 Support: Enables easy and stable overclocking for enhanced memory performance.

Note on Overclocking: Overclocked speeds depend on memory module quality and cooling efficiency. Ensure optimal cooling for stable operation.

Power Requirements and Cooling

The MSI PRO Z790-P WIFI DDR5 Motherboard is engineered with robust power delivery and advanced cooling solutions, ensuring reliable and stable performance even under demanding loads.

Power Connectors

• 24-Pin ATX Power Connector: Provides steady power delivery to the motherboard.
• 8+4-Pin EPS CPU Power Connectors: Supports high-performance CPUs, ensuring stable operation even during overclocking.

Cooling and Fan Headers

• 1x CPU Fan Header: Compatible with most air and liquid coolers for efficient CPU cooling.
• 1x Pump Fan Header: Ideal for AIO or custom water-cooling setups.
• 4x System Fan Headers: Allows comprehensive case cooling for optimal airflow.
• VRM Cooling: Equipped with premium heatsinks for efficient heat dissipation, ensuring stability during overclocking.

Power Supply Recommendations for MSI PRO Z790-P WIFI DDR5

• 650W PSU: Recommended for mid-range builds using GPUs like the RTX 4060 Ti.
• 750W PSU: Ideal for systems with high-performance GPUs like the RX 7700 XT.
• 850W PSU: Ensures stable power for builds featuring flagship GPUs like the RTX 4090.

Maximize performance with the right power supply and advanced cooling—get started on your build today!

Is This Motherboard for You?

The MSI PRO Z790-P WIFI is perfect for gamers, content creators, and professionals seeking advanced features in a reliable ATX motherboard. With DDR5 support, PCIe 5.0, Wi-Fi 6E, and four M.2 slots, this board delivers exceptional performance and future-proofing for your next PC build.
