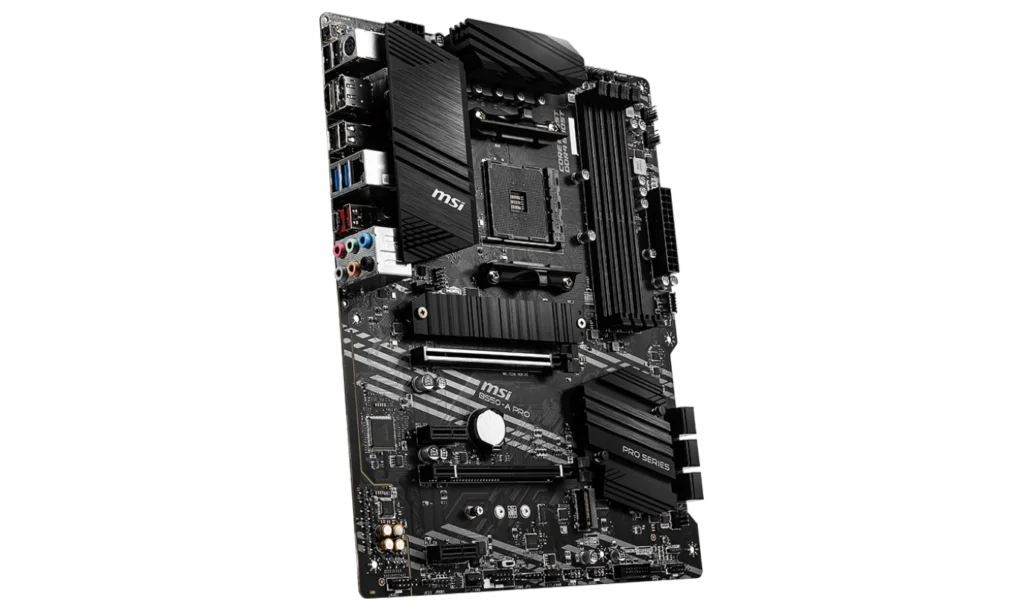

The MSI B550-A PRO is a robust ATX motherboard that balances performance and affordability, targeting both gamers and productivity users who want to build a solid system without breaking the bank. Designed with the AMD B550 chipset, it offers support for the latest Ryzen 5000 and 3000 series processors, PCIe 4.0, and modern connectivity, making it a future-proof choice for high-performance and budget-conscious builders alike.
At around PHP 8,000 (~$141 USD) for refurbished or used units, this board offers a great combination of features at an attractive price point.
Key Features and Specifications
- Motherboard Model: MSI B550-A PRO
- Socket: AMD AM4
- Chipset: AMD B550
- Memory Channels: Dual-channel
- DIMM Slots: 4 slots, supporting up to 128GB of DDR4 RAM
- PCI-E Slots: 1x PCIe 4.0/3.0 x16 (for GPUs), 1x PCIe 3.0 x16 (supports x4 speed)
- 2x PCIe 3.0 x1 (for additional peripherals)
- Storage: 6 SATAIII ports (6Gbps), 2 M.2 slots (PCIe 4.0 and PCIe 3.0 support)
- USB Ports: Front: 1 USB 3.2 Gen 1 Type-C, 2 USB 3.2 Gen 1 Type-A, 4 USB 2.0
- Rear: 1 USB 3.2 Gen 2 Type-C, 1 USB 3.2 Gen 2 Type-A, 2 USB 3.2 Gen 1 Type-A, 4 USB 2.0
- Networking: Realtek® 8111H Gigabit LAN
- Audio: Realtek® ALC892/ALC897 Codec supporting 7.1-channel HD audio
- Video Outputs: HDMI 2.1 port (supports 4K @ 60Hz), DisplayPort (supports 4K @ 60Hz)
- Form Factor: ATX (30.5 cm x 24.4 cm)
Compatibility and Performance
CPU Compatibility
The MSI B550-A PRO supports the latest AMD Ryzen™ 5000 and 3000 Series processors, excluding the Ryzen 5 3400G and Ryzen 3 3200G APUs. This ensures that it can handle modern gaming and productivity workloads, making it ideal for users who want high performance without having to invest in more expensive motherboards.
Memory Compatibility
With 4 DIMM slots and support for up to 128GB of DDR4 RAM, this board is well-suited for multitasking and memory-intensive applications such as video editing, streaming, and gaming. It supports RAM speeds up to 4800 MHz (via A-XMP OC Mode), allowing users to take advantage of fast memory for better system performance.
Graphics Compatibility
The MSI B550-A PRO supports integrated graphics from Ryzen 4000 G-Series processors, making it a solid choice for users who don’t need a dedicated GPU. It offers:
- HDMI 2.1, which supports 4K @ 60Hz for modern displays.
- DisplayPort, which also supports 4K @ 60Hz, providing flexibility for dual-monitor setups or high-resolution displays.
Storage Options
The B550-A PRO offers a flexible storage setup with:
- 2 M.2 slots (Key M):
- M2_1 supports PCIe 4.0 x4, perfect for ultra-fast NVMe SSDs.
- M2_2 supports PCIe 3.0 x4, offering additional flexibility for NVMe or SATA SSDs.
- 6 SATAIII ports for traditional HDDs and SSDs.
These storage options, coupled with RAID 0, 1, and 10 support, provide excellent storage flexibility and the potential for fast load times and data redundancy.
Expansion and Connectivity
PCIe and Expansion Slots
The B550-A PRO includes:
- 1 PCIe 4.0/3.0 x16 slot for a discrete GPU.
- 1 PCIe 3.0 x16 slot supporting x4 speed for additional expansion cards such as a secondary GPU or NVMe expansion.
- 2 PCIe 3.0 x1 slots for sound cards, network cards, or other peripherals.
This gives users enough flexibility for a multi-GPU setup or additional expansion cards, making it a versatile choice for gaming or productivity.
USB and Connectivity
The B550-A PRO provides comprehensive USB support:
- Front panel: 1 USB 3.2 Gen 1 Type-C, 2 USB 3.2 Gen 1 Type-A, 4 USB 2.0.
- Rear panel: 1 USB 3.2 Gen 2 Type-C, 1 USB 3.2 Gen 2 Type-A, 2 USB 3.2 Gen 1 Type-A, and 4 USB 2.0.
This setup ensures ample connectivity for both modern and legacy peripherals, catering to users who need multiple ports for external storage, printers, gaming peripherals, or other devices.
Audio and Networking
Audio
The Realtek ALC892/ALC897 Codec provides 7.1-channel HD audio, which is more than adequate for gaming, media consumption, and video calls. However, for users with higher-end audio needs, an external DAC or sound card might be preferable.
Networking
The motherboard is equipped with a Realtek® 8111H Gigabit LAN controller, ensuring stable and fast internet connectivity, suitable for online gaming, streaming, or work-from-home setups. While the absence of built-in Wi-Fi may be a drawback for some users, this can easily be remedied by adding a Wi-Fi card in one of the PCIe slots.
Power, Cooling, and Overclocking
The B550-A PRO is designed for moderate overclocking with a well-structured VRM layout and efficient cooling features. It includes:
- 1 CPU fan header
- 1 water-pump fan header
- 6 system fan headers
These cooling options are more than adequate for air-cooled systems or entry-level liquid cooling setups, ensuring stability and performance even under heavy workloads.
Pricing and Availability
The MSI B550-A PRO is priced at approximately ₱8,000 PHP for refurbished units, making it a highly attractive option for users looking for an affordable ATX motherboard with PCIe 4.0, dual M.2 slots, and ample USB connectivity. Brand new prices may vary depending on the retailer and availability.
Pros and Cons
Pros
- PCIe 4.0 support: Future-proofing for next-gen GPUs and SSDs.
- Dual M.2 slots: Great for users who need fast storage options.
- High-speed memory support: Up to 4800 MHz via A-XMP OC Mode.
- Comprehensive USB support: Front and rear USB 3.2 Gen 2 and USB Type-C ports.
- Affordable: Offers great value for its price, particularly in the mid-range motherboard category.
Cons
- No built-in Wi-Fi: Requires a separate Wi-Fi adapter for wireless connectivity.
- Limited overclocking: While capable, this board isn’t designed for extreme overclocking.
- Basic audio: The onboard audio is adequate but may not satisfy high-end audio enthusiasts.
Who Should Buy the MSI B550-A PRO?
The MSI B550-A PRO is a great fit for:
- Budget-conscious gamers who want PCIe 4.0 and a reliable motherboard without spending a fortune.
- Home office users or creators who need a powerful system for work or content creation.
- First-time builders who need a feature-packed, reliable motherboard with plenty of room for upgrades.
Final Verdict
The MSI B550-A PRO delivers excellent value for users looking to build a capable and future-proof system without overspending. With PCIe 4.0, dual M.2 slots, robust USB connectivity, and support for the latest AMD Ryzen™ processors, it is well-suited for gaming, productivity, and general use.
While it lacks built-in Wi-Fi, the variety of expansion slots and cooling options make it a highly versatile motherboard, making it a solid choice for budget and mid-range builds alike.
How to Download MSI B550-A PRO Motherboard Driver and BIOS Update
To download the latest drivers and BIOS for the MSI B550-A PRO Motherboard, visit the official MSI Support page. Search for your motherboard model, then select your operating system (e.g., Windows 10 or Windows 11 64-bit) under the Drivers & Downloads section. Download essential drivers such as chipset, LAN, and audio to ensure the proper functionality of your system.
For a BIOS update, download the latest version, save it to a FAT32-formatted USB drive, and restart your PC. During startup, press the Delete key to enter the BIOS menu and navigate to M-Flash. Select the BIOS file from the USB drive and follow the on-screen instructions to complete the update. Ensure that the PC remains powered on throughout the process, as it will reboot automatically after the update.
Visit the MSI Support page to download all necessary drivers and BIOS updates for your motherboard.
