The MSI MAG B550M MORTAR WIFI is a mid-range micro-ATX motherboard designed for gamers and professionals seeking high performance and modern connectivity at an affordable price. With support for the latest AMD Ryzen 5000, 4000G, and 3000 series processors, this board provides ample upgrade potential, solid overclocking capabilities, and excellent networking features with built-in Wi-Fi 6.
Priced at PHP 10,000 (~$180), it strikes a great balance between power and value, making it ideal for mid-tier gaming builds and workstation setups.
Key Features and Specifications
- Motherboard Model: MSI MAG B550M MORTAR WIFI
- Socket: AMD Socket AM4
- Chipset: AMD B550
- Memory Channels: Dual-channel
- DIMM Slots: 4 slots, supporting up to 128GB of DDR4 RAM
- PCI-E Slots: 1 PCI-E 4.0/3.0 x16 slot (ideal for discrete graphics cards), 1 PCI-E 3.0 x16 slot (x4 mode), 2 PCI-E 3.0 x1 slots
- Storage: 6 SATAIII ports (6Gbps) for HDDs/SSDs, 2 M.2 slots (PCIe 4.0 x4 and PCIe 3.0 x4 support)
- RAID: Supports RAID 0, 1, and 10 for SATA devices, RAID 0 and 1 for M.2 NVMe devices
- USB Ports: Front: 1 USB 3.2 Gen 1 Type-C, 2 USB 3.2 Gen 1 Type-A, 4 USB 2.0 ports, Rear: 1 USB 3.2 Gen 2 Type-C, 1 USB 3.2 Gen 2 Type-A, 2 USB 3.2 Gen 1 Type-A, 2 USB 2.0 ports
- Audio: Realtek® ALC1200/ALC1220P codec supporting 7.1-channel audio
- Video Outputs: 1 HDMI 2.1 port (supports 4K @ 60Hz), 1 DisplayPort (supports 4K @ 60Hz), Networking: Wi-Fi 6 and 2.5G LAN
- Form Factor: Micro-ATX (mATX)
Compatibility and Performance
CPU Compatibility
The MSI MAG B550M MORTAR WIFI supports a wide range of AMD Ryzen processors, from the latest Ryzen 5000 series to 4000G APUs and 3000 series CPUs, excluding a few models like the Ryzen 5 3400G and Ryzen 3 3200G.
It’s an excellent choice for users who need a motherboard that can handle high-end gaming, video editing, and heavy multitasking.
Memory Compatibility
With 4 DIMM slots supporting up to 128GB of DDR4 RAM, this motherboard provides great memory capacity. It supports speeds up to 4400+ MHz in overclocking mode, making it ideal for gamers and professionals who require high-speed memory for demanding applications.
The dual-channel architecture further enhances performance, particularly in memory-intensive tasks.
Graphics Compatibility
For users with Ryzen APUs that feature integrated graphics, the HDMI 2.1 and DisplayPort outputs support up to 4K @ 60Hz, perfect for high-definition media output. The PCIe 4.0 x16 slot allows for the installation of a high-performance discrete graphics card, which is essential for gaming or rendering applications.
Storage
The MSI MAG B550M MORTAR WIFI offers versatile storage options:
- 6 SATAIII ports for traditional HDDs or SSDs
- 2 M.2 slots
The M2_1 slot supports PCIe 4.0/3.0 x4 for ultra-fast NVMe SSDs, giving you lightning-fast boot times and data transfer speeds. M2_2 slot supports PCIe 3.0 x4 for additional NVMe storage.
This combination allows for flexible storage setups, with high-speed NVMe SSDs for fast load times and large-capacity SATA drives for mass storage. The inclusion of RAID support for both SATA and M.2 devices is ideal for users needing additional data redundancy or performance boosts.
Expansion and Connectivity
PCIe and Expansion Slots
The MAG B550M MORTAR WIFI includes:
- 1 PCIe 4.0 x16 slot for your primary GPU
- 1 PCIe 3.0 x16 slot (x4 mode) and 2 PCIe 3.0 x1 slots for other peripherals like Wi-Fi cards or additional storage controllers.
This expansion capacity is enough for most gamers and professionals, though installing an M.2 SSD in the M2_2 slot will disable the PCI-E4 slot, so consider this when planning your build.
USB and Connectivity
This board provides a wide range of USB connectivity options, including:
- Front panel: 1 USB 3.2 Gen 1 Type-C and 2 USB 3.2 Gen 1 Type-A ports, plus 4 USB 2.0 ports.

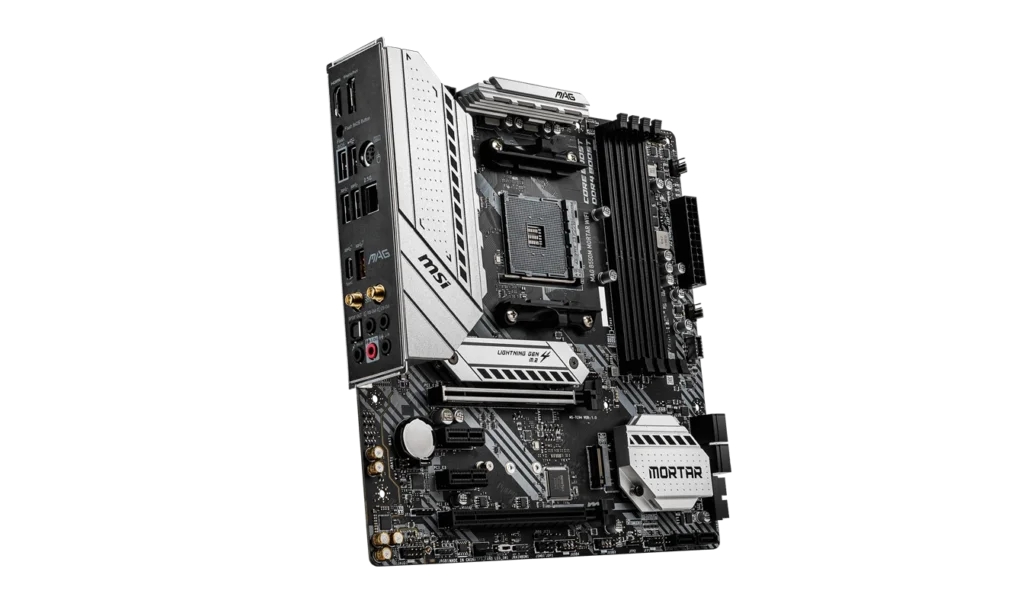

- Rear panel: 1 USB 3.2 Gen 2 Type-C, 1 USB 3.2 Gen 2 Type-A, and 2 USB 3.2 Gen 1 Type-A ports, as well as 2 USB 2.0 ports.
This variety ensures that you can connect all your modern and legacy peripherals with ease. Additionally, the board features Wi-Fi 6 and Bluetooth 5.2 for wireless connectivity, along with a 2.5Gbps LAN port for high-speed, low-latency wired connections.
Audio and Networking
The Realtek ALC1200/ALC1220P codec delivers high-quality 7.1-channel audio with support for S/PDIF output, making it perfect for users who need rich sound for gaming or media production. The included Wi-Fi 6 and 2.5G LAN provide fast and stable networking options for both wired and wireless internet connections, essential for gamers and streamers who require low latency.
Power, Cooling, and Overclocking
The MSI MAG B550M MORTAR WIFI is built for stability, with a robust 12-phase VRM design that ensures consistent power delivery to the CPU, even during overclocking. It features heatsinks over the VRMs to keep temperatures in check under heavy load.
Cooling-wise, the motherboard includes:
- 1 CPU fan header
- 1 water pump header
- 3 system fan headers
This ensures ample cooling options for a standard build, whether you’re using air cooling or a custom liquid cooling setup.
Pricing and Availability
The MSI MAG B550M MORTAR WIFI is priced at PHP 10,000 (~$180), making it a great option for users who want high-end features like PCIe 4.0, Wi-Fi 6, and strong overclocking support without paying premium prices.
Pros and Cons
Pros
- Supports PCIe 4.0 for faster GPU and storage performance
- Wi-Fi 6 and Bluetooth 5.2 included
- Great VRM cooling for stable overclocking
- Dual M.2 slots with RAID support
- Solid networking with 2.5G LAN
Cons
- PCI-E slot limitations: Installing an SSD in the M2_2 slot disables one PCIe x16 slot.
- No support for older APUs like the Ryzen 3400G and 3200G.
Video: MSI MAG B550M Mortar MAX WiFi Overview
This video provides a close-up look at the MSI MAG B550M Mortar MAX WiFi gaming motherboard. The reviewer highlights the motherboard’s aesthetics, including its cool finish and aluminum construction. They also point out the motherboard’s features, such as its video outputs, USB ports, and Wi-Fi antennas.
Who Should Buy the MSI MAG B550M MORTAR WIFI?
The MSI MAG B550M MORTAR WIFI is perfect for:
- Mid-range gamers looking to build a high-performance PC with Ryzen 5000 or 3000 series processors.
- Content creators who need fast storage and solid memory performance for multitasking.
- Enthusiasts who want to overclock their CPU for extra performance.
Final Verdict
At PHP 10,000 (~$180), the MSI MAG B550M MORTAR WIFI offers a lot of features typically found in higher-end motherboards. With PCIe 4.0 support, Wi-Fi 6, and strong cooling for stable overclocking, this motherboard is an excellent choice for mid-tier gaming rigs and professional workstations alike. It’s a well-rounded motherboard for anyone building a performance-focused PC without breaking your savings.
How to Download MSI MAG B550M MORTAR WIFI Motherboard Driver and BIOS Update
To download the latest drivers and BIOS for the MSI MAG B550M MORTAR WIFI Motherboard, visit the official MSI Support page. Search for your motherboard model, then select your operating system (e.g., Windows 10 or Windows 11 64-bit) under the Drivers & Downloads section. Download essential drivers such as chipset, LAN, audio, and others to ensure proper functionality of your system.
For a BIOS update, download the latest version, save it to a FAT32-formatted USB drive, and restart your PC. During startup, press the Delete key to enter the BIOS menu and navigate to M-Flash. Select the BIOS file from the USB drive and follow the on-screen instructions to complete the update. Ensure your PC remains powered on throughout the process, as it will reboot automatically once the update is complete.
Visit the MSI Support page to download all necessary drivers and BIOS updates for your MSI MAG B550M MORTAR WIFI Motherboard today.
