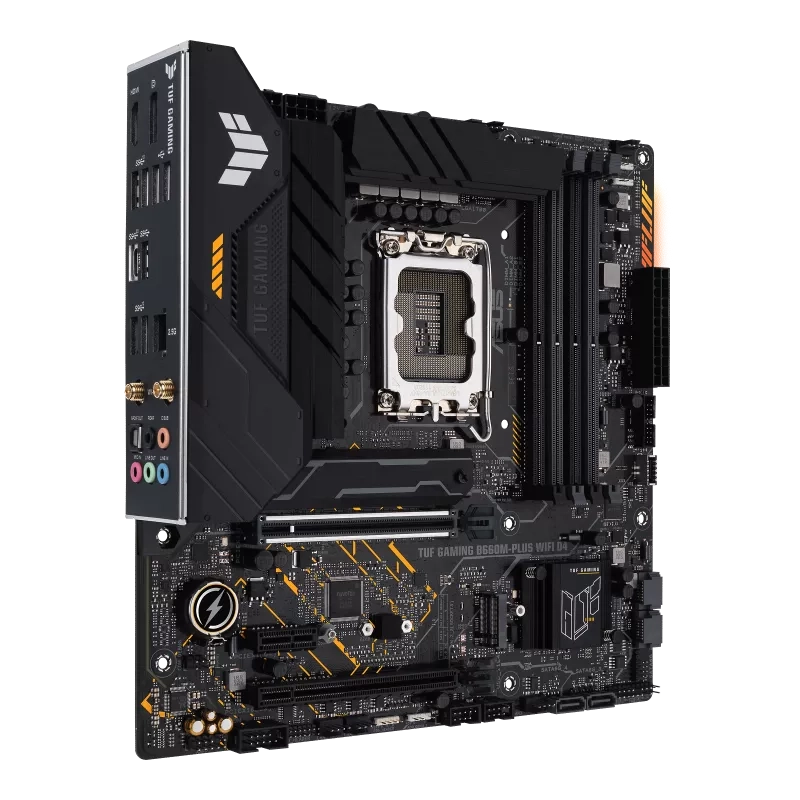

ASUS TUF GAMING B660M-PLUS WIFI, LGA1700, Intel 14th/13th/12th Gen, DDR4

The ASUS TUF GAMING B660M-PLUS WIFI motherboard combines durability, performance, and advanced features to handle the demands of modern gaming and productivity tasks. Built to support Intel’s latest 14th, 13th, and 12th Gen processors, this motherboard features PCIe 5.0 for cutting-edge GPUs and DDR4 memory support up to 5333MHz (OC).

Designed with gamers in mind, the board boasts dual PCIe 4.0 M.2 slots with flexible heatsinks, ensuring optimal performance for high-speed NVMe SSDs. The robust 10+1 DrMOS power stages, ProCool sockets, and military-grade TUF components deliver consistent and reliable power delivery for demanding tasks. Connectivity is seamless with Intel WiFi 6, Realtek 2.5Gb Ethernet, and a range of USB options, including rear USB 3.2 Gen 2×2 Type-C.

DIY-friendly features such as a pre-mounted I/O shield, M.2 Q-Latch, and Q-LED simplify installation, while Aura Sync RGB lighting and addressable Gen 2 headers allow for complete customization.

Key Features

• Processor Compatibility: Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors.
• Memory Support: Four DDR4 DIMM slots supporting up to 128GB of memory at speeds up to 5333MHz (OC).
• PCIe 5.0 Ready: One PCIe 5.0 x16 slot for the latest GPUs.
• Storage Options: Dual PCIe 4.0 M.2 slots and four SATA 6Gb/s ports for flexible storage solutions.
• Networking: Intel WiFi 6 and Realtek 2.5Gb Ethernet for high-speed wired and wireless connectivity.
• Comprehensive Cooling: VRM heatsinks, flexible M.2 heatsinks, hybrid fan headers, and Fan Xpert 2+ for efficient cooling.
• Durable Design: TUF components, six-layer PCB, Digi+ VRM, and ProCool connectors ensure long-lasting durability.
• Customizable Aesthetics: Aura Sync RGB lighting with three addressable Gen 2 headers and one RGB header.
• DIY-Friendly Design: Pre-mounted I/O shield, M.2 Q-Latch, and Q-LED for easy installation and troubleshooting.

ASUS TUF GAMING B660M-PLUS WIFI Specifications

• Brand: ASUS
• Model: TUF GAMING B660M-PLUS WIFI D4
• Socket Type: LGA1700
• Chipset: Intel B660
• Processor Compatibility: 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
• Memory Support: 4 x DDR4 DIMM slots, up to 128GB, speeds up to 5333MHz (OC)
• Graphics Support: 1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x16 slot (x4 mode), 1 x PCIe 4.0 x1 slot
• Storage Interface: 2 x PCIe 4.0 M.2 slots, 4 x SATA 6Gb/s connectors with RAID 0, 1, 5, and 10 support
• Networking: Intel WiFi 6, Realtek 2.5Gb Ethernet, Bluetooth 5.2
• Audio: Realtek 7.1 HD Audio CODEC, supports up to 24-bit/192kHz playback, DTS Audio Processing
• USB Ports: Rear: 1 x USB 3.2 Gen 2×2 (Type-C), 4 x USB 3.2 Gen 2 (Type-A), 1 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 1 x USB 3.2 Gen 1 header (Type-C), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
• Cooling: 1 x CPU fan header, 1 x CPU OPT fan header, 1 x AIO pump header, 3 x chassis fan headers, Fan Xpert 2+
• RGB Lighting: Aura Sync RGB with 1 RGB header and 3 addressable Gen 2 headers
• Internal I/O Connectors: 2 x M.2 slots, 4 x SATA 6Gb/s connectors, USB headers, RGB headers, Thunderbolt header, TPM header, clear CMOS header
• Back Panel I/O: 1 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen 2×2 (Type-C), 4 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x Realtek 2.5Gb Ethernet port, 1 x WiFi module, 5 x audio jacks, 1 x optical S/PDIF out port
• BIOS: 128Mb Flash ROM, UEFI AMI BIOS
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
• Operating System Support: Windows 11 and Windows 10 64-bit

Processor Compatibility

The ASUS TUF GAMING B660M-PLUS WIFI motherboard is equipped with the LGA1700 socket, making it compatible with Intel’s 12th and 13th Gen processors. It delivers reliable performance for a variety of tasks, from gaming to productivity.

• Compatibility Range: From Intel Celeron and Pentium processors for budget builds to high-performance Intel Core i9 13th Gen CPUs for demanding workloads.
• Future-Proofing: BIOS updates ensure compatibility with upcoming Intel processor generations for the LGA1700 platform.

Processor Recommendations for ASUS TUF GAMING B660M-PLUS WIFI

• Intel Core i7-13700KF: Excellent for gaming, streaming, and creative tasks.
• Intel Core i5-12400: Ideal for budget-conscious builders seeking balanced performance.

Discrete GPU Recommendation

The motherboard features a PCIe 4.0 x16 slot, enabling excellent compatibility with current-gen GPUs. While not PCIe 5.0, PCIe 4.0 offers ample bandwidth for gaming and productivity.

• Compatibility Note: PCIe 5.0 GPUs are backward compatible but will operate at PCIe 4.0 speeds, making this a great choice for high-end PCIe 4.0 GPUs.

GPU Recommendations for ASUS TUF GAMING B660M-PLUS WIFI

• NVIDIA RTX 4070: Outstanding for 1440p gaming and light 4K workloads.
• AMD Radeon RX 6700 XT: A powerful option for high-performance 1080p and 1440p gaming.

Memory Compatibility

The ASUS TUF GAMING B660M-PLUS WIFI motherboard supports DDR4 memory, offering both affordability and solid performance.

• Capacity: Up to 128GB across 4 DIMM slots, ensuring sufficient multitasking capabilities.
• Speeds: Native support for DDR4 3200 MT/s, with overclocking support up to 5333 MT/s (OC) for enthusiasts.
• XMP Profiles: Simplifies memory overclocking to unlock additional performance.

DDR4 remains an excellent option for builders seeking a balance of price and performance, especially in gaming setups.

Power Requirements and Cooling

This motherboard is designed to handle the power needs of modern processors while maintaining thermal efficiency.

• Power Connectors: Equipped with 8+4-pin EPS connectors to deliver stable power to Intel Core CPUs, even under heavy loads.
• Cooling Solutions: Includes VRM heatsinks to keep temperatures low during intense gaming or overclocking sessions.
• Fan Headers: Features multiple 4-pin fan headers, including support for AIO pumps, allowing advanced cooling setups.

Power Supply Recommendations ASUS TUF GAMING B660M-PLUS WIFI

• 550W PSU: Ideal for systems with mid-range GPUs like the RX 6700 XT.
• 750W PSU: Perfect for builds with high-end GPUs like the RTX 4070.

Storage Options and Connectivity

The ASUS TUF GAMING B660M-PLUS WIFI ensures fast and reliable storage options, catering to gamers and creators alike.

• M.2 Slots: Features two PCIe 4.0 M.2 slots, offering ultra-fast NVMe SSD support for faster boot times and load speeds.
• SATA Ports: Includes 4 SATA III ports, perfect for traditional HDDs and SSDs.
• USB Connectivity: Offers comprehensive USB support, including USB 3.2 Gen 2×2 Type-C for high-speed external drives.
• Wi-Fi 6: Ensures fast, reliable wireless connectivity for online gaming and streaming.
• 2.5Gb Ethernet: Provides high-speed wired networking for minimal latency during competitive gaming.

Is This Motherboard for You?

The ASUS TUF GAMING B660M-PLUS WIFI is perfect for gamers, PC builders, and enthusiasts who demand reliability, durability, and performance. With support for PCIe 5.0, WiFi 6, DDR4 memory, and advanced cooling, this motherboard is an excellent choice for modern gaming and productivity builds.
