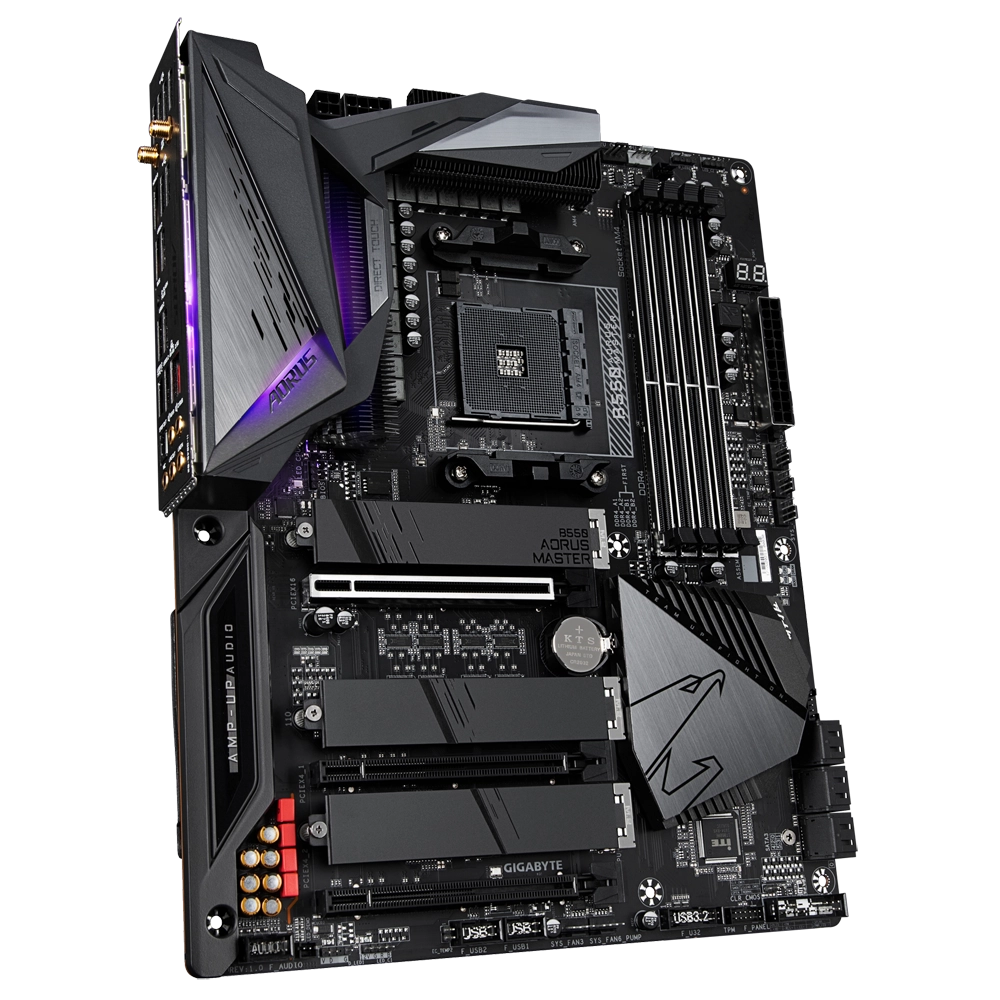

Gigabyte B550 AORUS MASTER, AM4, Ryzen 5000/4000/3000, DDR4

The Gigabyte B550 AORUS MASTER motherboard is designed for top-tier performance and scalability, making it the ultimate choice for gamers, content creators, and enthusiasts. Supporting AMD Ryzen™ 5000 and 3000 Series processors, this motherboard delivers exceptional multitasking capabilities, blazing-fast PCIe 4.0 speeds, and a robust cooling solution. Its advanced connectivity features, including Wi-Fi 6, 2.5GbE LAN, and versatile USB options, ensure you’re prepared for the most demanding tasks and future upgrades.

Key Features

• Processor Compatibility: Optimized for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.
• Memory Support: Up to 128GB DDR4 memory with speeds up to 5400MHz (OC).
• Graphics Outputs: HDMI 2.1 support for stunning 4K visuals at 60Hz.
• Expansion Slots: PCIe 4.0 and PCIe 3.0 slots for high-performance GPUs and add-on cards.
• Storage Interface: Triple M.2 slots with PCIe 4.0 support and six SATA 6Gb/s ports for extensive storage options.
• Wireless Connectivity: Intel® Wi-Fi 6 and Bluetooth 5 for fast and reliable connections.
• Enhanced Audio: Realtek® ALC1220-VB codec with DTS:X® Ultra support and optical S/PDIF Out.
• Advanced Cooling: Comprehensive fan and pump headers with AIO compatibility for optimal cooling.
• RGB Customization: RGB Fusion 2.0 with addressable and RGB LED headers for stunning lighting effects.

Gigabyte B550 AORUS MASTER Specifications

• Brand: GIGABYTE
• Model: B550 AORUS MASTER
• Socket Type: AM4
• Chipset: AMD B550
• Processor Compatibility: AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.
• Memory Support: 4 x DDR4 DIMM sockets, up to 128GB.
• Graphics Support: Integrated Graphics Processor with HDMI 2.1 (4096×2160@60Hz, HDR, HDCP 2.3). Maximum shared memory: 16GB.
• Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x4.
• Storage Interface: 3 x M.2 slots (2 x PCIe 4.0 x4, 1 x PCIe 3.0 x4), 6 x SATA 6Gb/s (RAID 0, 1, 10).
• USB Ports: Rear: 4 x USB 3.2 Gen 2 (including 1 x Type-C), 6 x USB 2.0; Internal: 2 x USB 3.2 Gen 1, 4 x USB 2.0.
• Networking: Realtek® 2.5GbE LAN, Intel® Wi-Fi 6 AX200, Bluetooth 5.
• Audio: Realtek® ALC1220-VB codec, DTS:X® Ultra, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out.
• BIOS: DualBIOS™, 2 x 256Mbit AMI UEFI BIOS.
• RGB and Cooling: 2 x addressable LED headers, 2 x RGB headers, 4 system fan headers, and 2 pump headers.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor and Dimensions: ATX, 30.5 cm x 24.4 cm.

Processor Compatibility

The Gigabyte B550 AORUS MASTER motherboard is designed to work effortlessly with a wide range of AMD Ryzen processors, making it a reliable and flexible choice for your PC build. It supports the high-performance Ryzen 5000 Series, 5000 G-Series with built-in graphics, as well as the 4000 G-Series and 3000 Series processors. Whether you’re building a gaming PC, a workstation, or a system for everyday tasks, this motherboard ensures compatibility and performance.

For gaming, the Ryzen 7 5800X is a great match. With 8 cores and 16 threads, it provides the speed and efficiency needed for smooth gameplay and multitasking. Another excellent choice for gamers is the Ryzen 7 5800X3D, which uses advanced AMD technology to deliver even better performance in demanding games.

If you’re focused on tasks like video editing, 3D modeling, or running multiple programs at once, the Ryzen 9 5900X or Ryzen 9 5950X are excellent options. With up to 16 cores, these processors handle heavy workloads with ease. For those building a system without a separate graphics card, the Ryzen 5 4600G and Ryzen 7 5700G include integrated graphics, making them ideal for everyday use or light gaming.

Discrete Graphics Compatibility

The primary PCIe 4.0 x16 slot ensures peak performance for high-end GPUs such as the NVIDIA RTX™ 40 Series or AMD Radeon™ RX 7000 Series. This motherboard is ideal for gaming, streaming, or professional workloads requiring top-notch graphics performance.

Onboard Graphics

While the motherboard offers an HDMI 2.1 port for resolutions up to 4K, users should install a discrete GPU for gaming or graphic-intensive tasks. The onboard graphics are suitable for basic productivity tasks.

Storage and Expansion

The motherboard supports up to three M.2 slots for ultra-fast NVMe SSDs, with PCIe 4.0 compatibility for the fastest storage speeds. Additionally, six SATA 6Gb/s ports provide ample room for RAID setups or additional hard drives.

Power Requirements and Cooling

The B550 AORUS MASTER requires a 24-pin ATX, an 8-pin, and an additional 4-pin power connector for stable operation under load. A 750W PSU is recommended for high-end builds with discrete GPUs and overclocking. Its robust cooling options, including dedicated pump headers, ensure your system stays cool during intense workloads.

Is This Motherboard for You?

The Gigabyte B550 AORUS MASTER is tailored for PC enthusiasts who demand the best in performance, connectivity, and customization. With cutting-edge features like PCIe 4.0, advanced networking, and superior audio, it’s perfect for gamers, creators, and power users aiming to build a high-performance PC.
