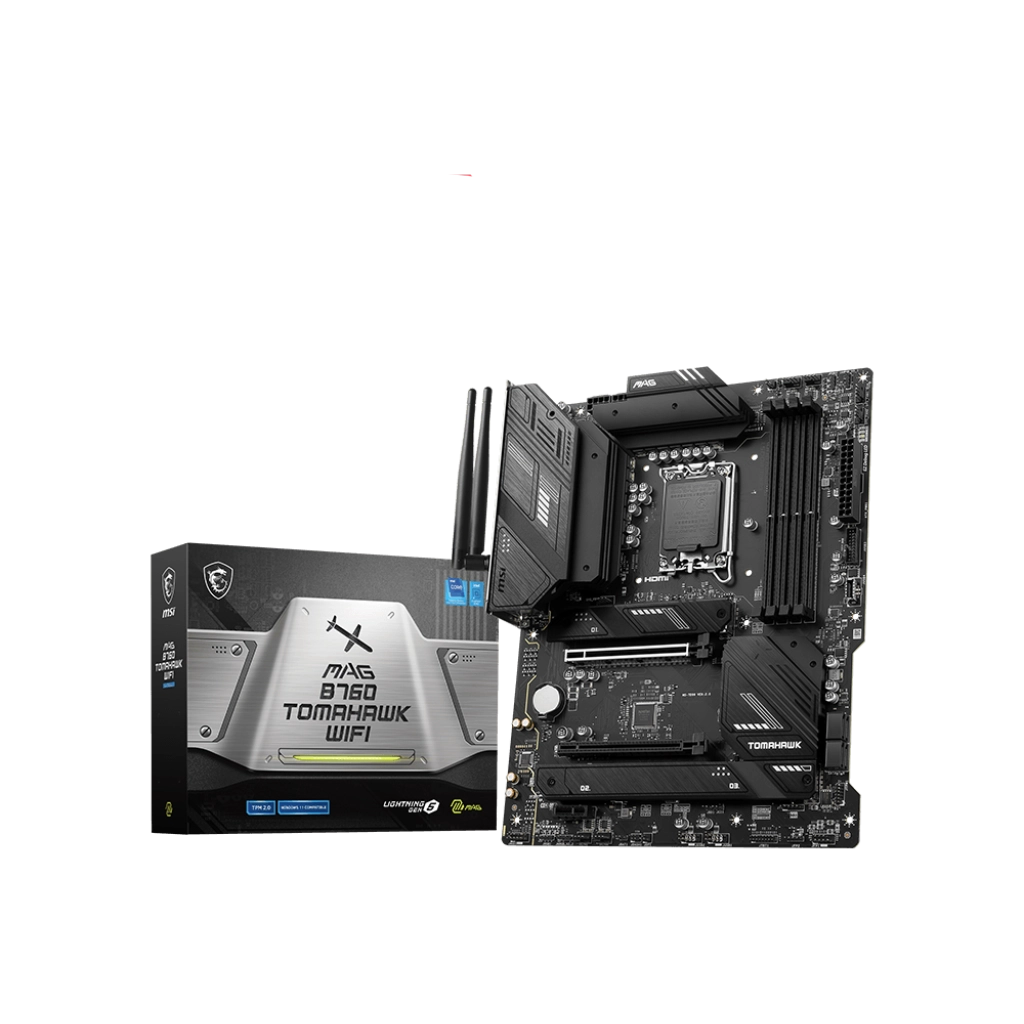

MSI MAG B760 TOMAHAWK WIFI, LGA1700, Intel 14th/13th/12th Gen, DDR5

The MSI MAG B760 TOMAHAWK WIFI DDR5 is designed for power users and enthusiasts who demand top-tier performance and reliability. Built on the Intel® B760 chipset, it supports the latest Intel® 14th, 13th, and 12th Gen processors and offers unparalleled performance with DDR5 memory compatibility and speeds up to 7000MHz (OC).

Equipped with PCIe 5.0 x16 support, this motherboard is ready for next-gen GPUs, while triple PCIe 4.0 M.2 slots with M.2 Shield FROZR provide ultra-fast storage with optimal thermal management. Networking is a breeze with Wi-Fi 6E and 2.5G LAN, ensuring fast and reliable connectivity. Additionally, Lightning USB 20G (USB 3.2 Gen 2×2 Type-C) delivers blazing-fast transfer speeds of up to 20Gbps.

Whether you’re a gamer, content creator, or multitasking professional, the MSI MAG B760 TOMAHAWK WIFI DDR5 is packed with features to maximize your system’s potential.

Key Features

• Supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron® processors.
• DDR5 memory compatibility with up to 256GB and speeds up to 7000MHz (OC).
• PCIe 5.0 x16 slot provides cutting-edge bandwidth for next-gen GPUs.
• Triple PCIe 4.0 M.2 slots with M.2 Shield FROZR for high-speed storage and thermal stability.
• Wi-Fi 6E and 2.5G LAN offer fast and reliable network connectivity.
• Lightning USB 20G (USB 3.2 Gen 2×2 Type-C) for ultra-fast 20Gbps data transfer.
• 6-layer PCB with 2oz copper ensures excellent durability and thermal performance.
• Audio Boost delivers high-quality, immersive audio.
• EZ Debug LED simplifies troubleshooting during system setup.
• ATX form factor, ideal for high-performance PC builds.

MSI MAG B760 TOMAHAWK WIFI DDR5 Specifications

• Brand: MSI
• Model: MAG B760 TOMAHAWK WIFI DDR5
• Socket: LGA1700
• Chipset: Intel B760
• Memory Support: DDR5, up to 7000MHz (OC), 4 DIMM slots, max 256GB
• Graphics Outputs: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (8K@60Hz)
• Expansion Slots: 1 PCIe 5.0 x16 (from CPU), 1 PCIe 4.0 x4 (from chipset), 1 PCIe 3.0 x1 (from chipset)
• Storage: 3 PCIe 4.0 M.2 slots (up to 22110), 4 SATA 6Gb/s ports
• Networking: Realtek® RTL8125BG 2.5G LAN, Intel® Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek® ALC897 Codec, 7.1-channel high-definition audio, supports S/PDIF out
• USB Ports: Rear: 4x USB 2.0, 4x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
• Cooling: 1 CPU fan header, 1 pump fan header, 5 system fan headers
• Power Requirements: 24-pin ATX power connector, 8-pin + 4-pin CPU power connectors
• Operating System Support: Windows 11 64-bit, Windows® 10 64-bit
• Form Factor: ATX (243.84mm x 304.8mm)

Processor Compatibility

The MSI MAG B760 TOMAHAWK WIFI DDR5 Motherboard supports Intel processors ranging from the 12th Gen to the 14th Gen, making it an excellent choice for those looking for flexibility in their builds. Whether you are using an entry-level processor or a high-performance one, this motherboard ensures compatibility and optimal performance.

Supported Intel Generations

• 12th Gen Intel Core Processors (Alder Lake): Introduced support for hybrid architecture with P-cores and E-cores.
• 13th Gen Intel Core Processors (Raptor Lake): Offers better multi-threading and gaming performance.
• 14th Gen Intel Core Processors: Latest advancements for power users and content creators.

Processor Recommendations for MSI MAG B760 TOMAHAWK WIFI DDR5

• Intel Core i5-12400F: A budget-friendly option with solid gaming and productivity performance.
• Intel Core i7-13700KF: Ideal for gamers and multitaskers who need higher clock speeds and more cores.
• Intel Core i9-14900K: Perfect for power users who require unmatched performance for demanding workloads and gaming.

Build your ultimate system—choose the best processor for your needs with the MSI MAG B760 TOMAHAWK WIFI DDR5!

Discrete GPU Compatibility

This motherboard is equipped with PCIe 4.0 slots, providing excellent bandwidth for modern graphics cards. While PCIe 5.0 GPUs are backward compatible, they will operate at PCIe 4.0 speeds, which remains sufficient for gaming and most workloads.

PCIe Compatibility Insights

• PCIe 4.0 GPUs: Optimized for this motherboard, delivering exceptional performance for gaming and content creation.
• PCIe 5.0 GPUs: Fully compatible but limited to PCIe 4.0 speeds, which may marginally impact performance in extreme scenarios.
• PCIe 3.0 GPUs: Still compatible but may bottleneck newer GPUs in high-performance tasks.

Graphics Card Recommendations for MSI MAG B760 TOMAHAWK WIFI DDR5

• AMD Radeon RX 6700 XT: Perfect for 1440p gaming with excellent performance and efficiency.
• NVIDIA GeForce RTX 3060 Ti: A versatile GPU for 1080p to 1440p gaming and ray tracing capabilities.
• NVIDIA GeForce RTX 4080: A high-end card ideal for 4K gaming and advanced AI-enhanced workloads.

Upgrade your graphics experience today—pair your motherboard with the right GPU for stunning visuals!

Memory Compatibility

The MSI MAG B760 TOMAHAWK WIFI DDR5 Motherboard offers cutting-edge memory support, harnessing the power of DDR5 for faster speeds, lower power consumption, and improved performance.

Key Memory Features

• Four DDR5 DIMM slots: Supports up to 128GB of total memory capacity, perfect for heavy multitasking and content creation.
• Supported Speeds: Overclock up to DDR5 7000 MHz (OC) for blazing-fast memory performance.
• Dual-Channel Memory Architecture: Improves data transfer rates and system efficiency.
• Intel XMP 3.0 Support: Ensures easier and more stable memory overclocking.

Overclock Limitation: Overclocking depends on the quality of the memory modules and cooling solutions, so ensure adequate cooling for stable operation.

Power Requirements and Cooling

The MSI MAG B760 TOMAHAWK WIFI DDR5 Motherboard features robust power connectors and advanced cooling solutions to ensure reliable and stable operation, even during intensive tasks.

Power Connectors

• 24-Pin ATX Main Power Connector: Supplies stable power to the motherboard.
• 8+4-Pin EPS CPU Power Connectors: Provides sufficient power for high-performance CPUs and overclocking.

Cooling and Fan Headers

• 1x CPU Fan Header: Supports a variety of CPU coolers, including air and liquid cooling options.
• 1x Pump Fan Header: Designed for AIO or custom water cooling setups.
• 5x System Fan Headers: Allows for comprehensive case cooling, ensuring optimal airflow.
• VRM Cooling: Equipped with high-quality heatsinks for effective heat dissipation, maintaining stability during overclocking or heavy workloads.

Power Supply Recommendations for MSI MAG B760 TOMAHAWK WIFI DDR5

• 650W PSU: Recommended for mid-range builds using GPUs like the RTX 3060 Ti.
• 750W PSU: Ideal for systems with GPUs such as the RX 6700 XT or RTX 3070.
• 850W PSU: Ensures stable power for high-end configurations with GPUs like the RTX 4080.

Ensure smooth operation—choose the right PSU and cooling solutions to match your build and unleash the full potential of the MSI MAG B760 TOMAHAWK WIFI DDR5!

Is This Motherboard for You?

The MSI MAG B760 TOMAHAWK WIFI DDR5 is an excellent choice for gamers, creators, and professionals who demand cutting-edge performance and features. With DDR5 memory, PCIe 5.0, Wi-Fi 6E, and robust cooling, this motherboard is perfect for high-performance gaming rigs and multitasking systems.
