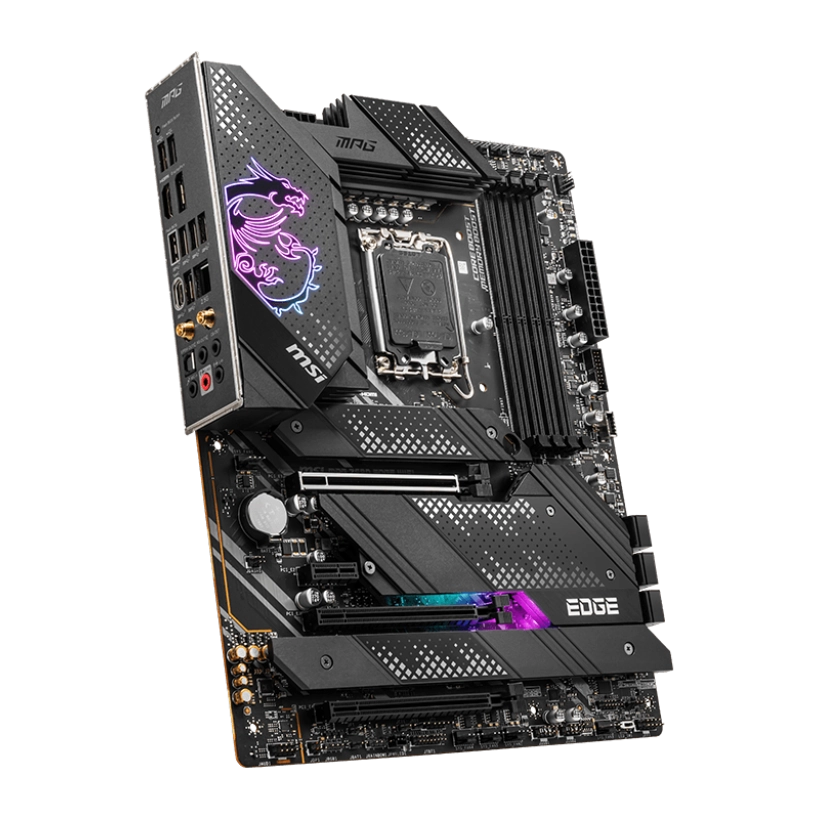

MSI MPG Z690 EDGE WIFI DDR5, LGA1700, Supports Intel 14th/13th/12th Gen

The MSI MPG Z690 EDGE WIFI DDR5 motherboard is built for enthusiasts looking to push the boundaries of performance. Powered by the Intel Z690 chipset, it supports the latest DDR5 memory with speeds up to 6400MHz (OC), offering significant performance enhancements over DDR4. The inclusion of PCIe 5.0 ensures compatibility with next-gen GPUs and storage, delivering up to 128GB/s bandwidth.

With Wi-Fi 6E and 2.5G LAN, the motherboard ensures low-latency networking for gaming, streaming, and multitasking. Its Quadruple M.2 slots with M.2 Shield Frozr provide maximum storage options, while the premium thermal design, featuring heavy MOSFET heatsinks, ensures stable performance under heavy workloads. Additionally, Audio Boost 5 delivers immersive, high-quality audio for gaming and content creation.

Key Features

• Processor Compatibility: Supports Intel 14th, 13th, and 12th Gen processors with LGA1700 socket.
• DDR5 Memory Support: Four DIMM slots, supporting up to 192GB at speeds up to 6400MHz (OC).
• Quadruple M.2 Slots: Four M.2 slots with PCIe 4.0 support and Intel Optane Memory compatibility.
• PCIe 5.0 Support: Offers one PCIe 5.0 x16 slot for high-performance GPUs.
• Networking: Intel Wi-Fi 6E and 2.5G LAN for ultra-fast and stable connections.
• Lightning USB 20G: USB 3.2 Gen 2×2 Type-C port for 20Gbps high-speed data transfers.
• Advanced Cooling: Includes M.2 Shield Frozr, MOSFET heatsinks, and multiple fan headers for optimal thermal management.
• Audio Boost 5: Realtek ALC4080 Codec for superior 7.1-channel HD audio with S/PDIF.

MSI MPG Z690 EDGE WIFI DDR5 Specifications

• Brand: MSI
• Model: MPG Z690 EDGE WIFI DDR5
• Socket Type: LGA1700
• Chipset: Intel Z690
• Processor Compatibility: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• Memory Support: DDR5, 4 DIMM slots, up to 192GB, speeds up to 6400MHz (OC).
• Graphics Support: HDMI 2.1 and DisplayPort 1.4 for integrated graphics.
• Storage Interface: 4 x M.2 slots (PCIe 4.0/3.0, some with SATA support), 6 x SATA 6Gb/s connectors with RAID 0, 1, and 10 support.
• Expansion Slots: 1 x PCIe 5.0 x16 slot (from CPU), 2 x PCIe 3.0 x4 slots (from chipset), 1 x PCIe 3.0 x1 slot (from chipset).
• USB Ports (Rear): 1 x USB 3.2 Gen 2×2 Type-C, 5 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0 Type-A.
• USB Ports (Internal): 1 x USB 3.2 Gen 2 Type-C header, 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports).
• Networking: Intel Wi-Fi 6E, 2.5G LAN.
• Audio: Realtek ALC4080 Codec, 7.1-channel HD audio with S/PDIF.
• RGB Lighting: 1 x 4-pin RGB LED header, 3 x 3-pin addressable RGB headers, EZ LED Control switch.
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
• Form Factor: ATX (30.5 cm x 24.4 cm).

Processor Compatibility

The MSI MPG Z690 EDGE WIFI DDR5 motherboard is compatible with a wide range of Intel processors, ensuring excellent performance across different builds. With the LGA 1700 socket and Intel Z690 chipset, this motherboard is designed to support:

• Intel 12th Gen Processors: Starting with entry-level Intel Celeron and Pentium Gold processors for basic computing needs.
• Intel 13th Gen Processors: Including powerful Core i9, i7, and i5 options optimized for gaming, productivity, and creative tasks.
• Intel 14th Gen Processors: Ensures future-proof compatibility via BIOS updates.

Processor Recommendations for MSI MPG Z690 EDGE WIFI DDR5

• Intel Core i5-12600K: Ideal for budget-friendly builds with reliable performance for gaming and multitasking.
• Intel Core i9-13900KF: A powerhouse CPU for gaming, 3D rendering, and intensive workloads.

Discrete GPU Compatibility

The MSI MPG Z690 EDGE WIFI DDR5 motherboard features PCIe 5.0, offering twice the bandwidth of PCIe 4.0. This ensures optimal performance for modern GPUs. It’s also backward-compatible with PCIe 4.0 and PCIe 3.0 GPUs, although older-generation cards may not fully utilize the PCIe 5.0 bandwidth.

PCIe Compatibility Discussion

• PCIe 5.0 GPUs: Designed for cutting-edge GPUs like the NVIDIA RTX 50 series (future).
• PCIe 4.0 GPUs: High-performance cards like RTX 4070 Ti or RX 7900 XT work flawlessly.
• PCIe 3.0 GPUs: Cards like GTX 1660 Super are compatible but may bottleneck performance.

Graphics Card Recommendations for MSI MPG Z690 EDGE WIFI DDR5

• NVIDIA RTX 4070 Super – A powerful PCIe 4.0 GPU, ideal for high-refresh 1440p gaming and entry-level 4K performance with DLSS 3 support.
• AMD Radeon RX 7700 XT – A PCIe 4.0 card offering excellent 1440p gaming performance, high VRAM capacity, and strong ray tracing capabilities at a great value.

Memory Compatibility

This MSI MPG Z690 EDGE WIFI DDR5  is designed to unlock the full potential of DDR5 memory, offering:

• Memory Capacity: Supports up to 128GB of DDR5 across four DIMM slots.
• Speeds: Native speeds starting at 4800MHz, with overclocking capability up to 6400+ MHz via XMP profiles.
• Limitations: Overclocking stability may vary depending on the quality of the RAM kit and cooling setup.

Power Requirements and Cooling

The MSI MPG Z690 EDGE WIFI DDR5 motherboard includes robust power delivery and cooling features to maintain system stability under heavy workloads:

• Power Connectors: Equipped with a 24-pin ATX main power connector and two 8-pin CPU power connectors to deliver clean, stable power to your processor.
• Cooling Headers:
  • 1 x 4-pin CPU fan header.
  • 1 x 4-pin water pump header for liquid cooling.
  • 6 x 4-pin system fan headers for case airflow.
• VRM Cooling: Premium heatsinks with thermal pads ensure efficient cooling for the VRMs during overclocking.

Power Supply Recommendations for MSI MPG Z690 EDGE WIFI DDR5

• 750W PSU: Ideal for builds with RTX 4070 or RX 6800 XT GPUs.
• 850W PSU: Recommended for high-end GPUs like RTX 4080 or multi-GPU setups.

Storage Options and Connectivity

The MSI MPG Z690 EDGE WIFI DDR5 motherboard provides versatile storage and connectivity options:

• M.2 Slots: Four PCIe 4.0/5.0 M.2 slots for ultra-fast NVMe SSDs.
• SATA Ports: Six SATA 6Gbps ports for additional SSDs or HDDs.
• Networking: Built-in Wi-Fi 6E for seamless wireless connectivity and Intel 2.5Gbps LAN for low-latency gaming.
• USB Ports: Includes USB 3.2 Gen 2×2 Type-C and multiple USB 3.2 Gen 2 and Gen 1 ports for fast data transfer and peripheral support.

Is This Motherboard Right for You?

The MSI MPG Z690 EDGE WIFI DDR5 is a premium motherboard for gamers, content creators, and PC enthusiasts seeking the latest technologies like DDR5 memory, PCIe 5.0, and Wi-Fi 6E. With its robust design, advanced cooling, and high-speed connectivity, it’s an excellent choice for high-performance builds.
