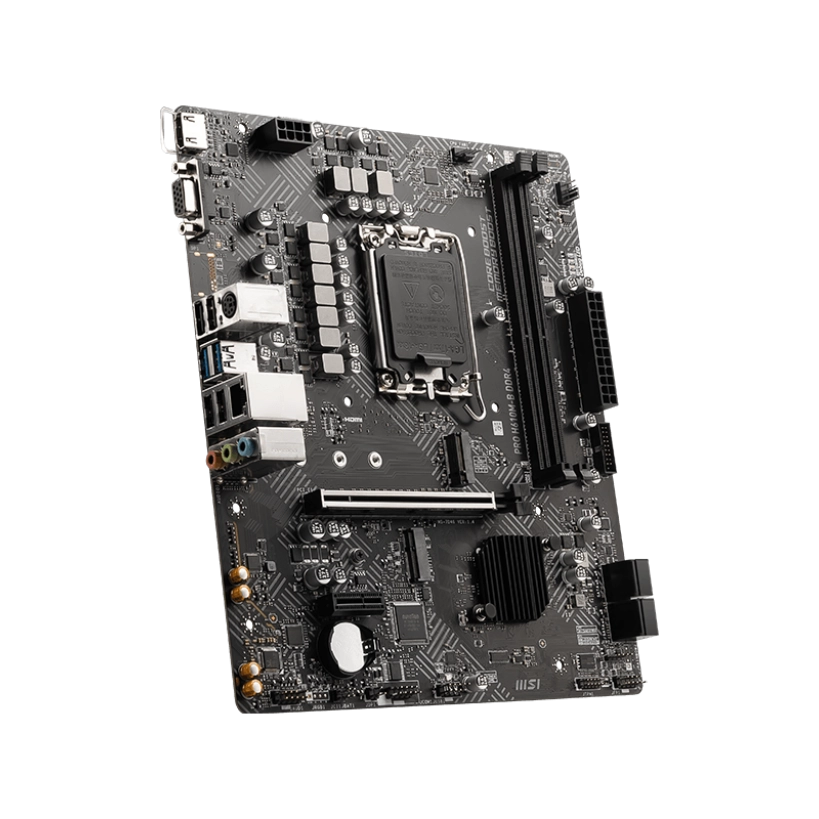

MSI PRO H610M B, LGA1700, Supports Intel 13th/12th Gen

The MSI PRO H610M B motherboard is a versatile micro-ATX board driven by the Intel H610 chipset, perfect for those seeking reliable performance in home offices, light gaming, and general computing. It is compatible with Intel’s 14th, 13th, and 12th Gen Core, as well as Pentium Gold and Celeron processors, providing robust computing capabilities for a variety of daily tasks.

This motherboard supports PCIe 4.0, enabling compatibility with the latest generation of graphics cards, and includes an M.2 slot for rapid NVMe SSDs, alongside support for up to 64GB of dual-channel DDR4 memory, which is ideal for handling contemporary applications efficiently.

Designed with durability in mind, the MSI PRO H610M B features Frozr AI Cooling technology to intelligently adjust fan speeds for optimal thermal management and an EZ Debug LED to facilitate straightforward troubleshooting. Additionally, its Audio Boost technology enhances the sound quality, making it an excellent choice for users who enjoy gaming, streaming, or multimedia activities.

Key Features

• Processor Compatibility: Supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• Memory Support: 2 DDR4 slots, up to 64GB, with speeds up to 3200MHz.
• PCIe 4.0 Slot: For high-performance graphics cards and add-ons.
• M.2 NVMe SSD Support: A single PCIe 3.0 x4 slot for ultra-fast storage.
• SATA Storage: 4 SATA 6Gb/s ports with Intel Smart Response Technology.
• Networking: Intel 1Gbps LAN for fast and stable connections.
• Integrated Graphics: HDMI 2.1 (4K@60Hz) and VGA output for processors with integrated GPUs.
• Advanced Cooling: Frozr AI Cooling with system-wide fan management.
• Enhanced Audio: Realtek ALC892/ALC897 codec for 7.1-channel HD audio.

MSI PRO H610M B Specifications

• Brand: MSI
• Model: PRO H610M B
• Socket Type: LGA1700
• Chipset: Intel H610
• Processor Compatibility: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• Memory Support: 2 x DDR4 DIMM slots, up to 64GB, speeds up to 3200MHz.
• Graphics Support: HDMI 2.1 (4096×2160@60Hz), VGA (2048×1536@50Hz).
• Expansion Slots: 1 PCIe 4.0 x16 slot, 1 PCIe 3.0 x1 slot.
• Storage Interface: 1 x M.2 slot (PCIe 3.0 x4 and SATA 6Gb/s), 4 x SATA 6Gb/s ports.
• USB Ports: Rear – 2 x USB 3.2 Gen1, 4 x USB 2.0; Internal – 2 x USB 3.2 Gen1 headers, 2 x USB 2.0 headers.
• Networking: Intel 1Gbps LAN (I219V).
• Audio: Realtek ALC892/ALC897 codec, 7.1-channel HD audio.
• Cooling Features: 1 CPU fan connector, 1 system fan connector.
• Operating System Support: Windows 11 and Windows 10 64-bit.
• Form Factor: Micro-ATX (24.4 cm x 21.1 cm).

Processor Compatibility

The MSI PRO H610M B motherboard is designed with the LGA 1700 socket, offering broad compatibility with Intel processors. This motherboard supports the following processor generations:

• Intel 10th Gen (Comet Lake): Not supported, as these processors use the older LGA 1200 socket.
• Intel 11th Gen (Rocket Lake): Not supported due to socket incompatibility.
• Intel 12th Gen (Alder Lake): Fully compatible, leveraging the new LGA 1700 socket for improved performance. These processors feature hybrid architecture (Performance and Efficiency cores), providing excellent multitasking and gaming capabilities.
• Intel 13th Gen (Raptor Lake): Fully compatible via the H610 chipset. BIOS updates may be required to unlock full functionality with newer Raptor Lake processors.

Recommended Processors for MSI PRO H610M B

• Intel Core i5-12400: A well-rounded option for everyday computing, gaming, and light productivity.
• Intel Core i3-13100: Great for budget-focused builds with reliable performance for general tasks and entry-level gaming.

Discrete GPU Compatibility

The MSI PRO H610M B motherboard is equipped with a PCIe 4.0 x16 slot, offering compatibility with the latest graphics cards. However, since PCIe 4.0 has half the bandwidth of the newer PCIe 5.0 standard, high-end GPUs may experience some bandwidth limitations. This makes the motherboard ideal for mid-range to entry-level GPUs, ensuring excellent performance without bottlenecks.

Compatibility Notes:

• Older GPUs using PCIe 3.0 will work seamlessly but won’t take full advantage of PCIe 4.0’s enhanced bandwidth.
• PCIe 5.0 GPUs are backward-compatible but may not perform at their peak efficiency due to the PCIe 4.0 limitation.

Recommended Graphics Cards for MSI PRO H610M B

• NVIDIA GeForce RTX 3060: A reliable choice for 1080p to 1440p gaming with smooth frame rates.
• AMD Radeon RX 6600 XT: Offers excellent performance for high-frame-rate 1080p gaming at a budget-friendly price.

Memory Compatibility

The MSI PRO H610M B motherboard supports DDR4 memory modules, making it a cost-effective option for those building an entry-level system.

• Capacity Support: Up to 64GB across two DIMM slots, allowing for future upgrades.
• Speeds Supported: Native speeds of 2133 MHz to 3200 MHz. Overclocking options are limited due to the H610 chipset’s lack of advanced overclocking capabilities.

This motherboard is ideal for users seeking a stable and reliable platform without needing the advanced overclocking features found in higher-end chipsets.

Power Requirements and Cooling

The MSI PRO H610M B motherboard is built with essential power and cooling features to ensure stable performance:

Power Connectors:

• 1x 24-pin ATX main power connector ensures consistent system power delivery.
• 1x 8-pin CPU power connector, providing ample power to the processor for everyday computing tasks.

Cooling Features:

• Fan Headers: Equipped with 1x 4-pin CPU fan header and 1x 4-pin system fan header for flexible cooling options.
• VRM Cooling: The motherboard features basic VRM heatsinks that provide adequate cooling for entry-level workloads but may struggle under prolonged heavy usage.

Recommended PSU Wattage MSI PRO H610M B motherboard

• 550W PSU: Perfect for builds with mid-tier GPUs like the RTX 3060 or RX 6600 XT.
• 650W PSU: Ideal for users planning minor upgrades or running more power-intensive components.

Storage Options and Connectivity

The MSI PRO H610M B motherboard offers versatile storage and connectivity options to meet everyday computing needs:

• M.2 Slot: Supports PCIe 4.0 NVMe SSDs for fast read/write speeds, ensuring quicker boot times and application loading.
• SATA Ports: Equipped with 4 SATA III 6Gbps ports, providing compatibility with traditional HDDs and SATA SSDs.
• USB Connectivity: Includes USB 3.2 Gen 1 and USB 2.0 ports on the rear I/O, with internal headers for additional USB expansion.
• Display Outputs: Features both HDMI and VGA ports, catering to modern and legacy display setups.

This motherboard is a great choice for entry-level users looking to build a reliable and affordable PC for general computing, light gaming, and productivity tasks.

Is This Motherboard Right for You?

The MSI PRO H610M B motherboard is an excellent choice for users seeking an affordable, reliable motherboard for everyday computing or entry-level gaming. With PCIe 4.0 support, NVMe SSD compatibility, and robust power delivery, it’s a practical solution for budget-conscious builders who want modern features without breaking the bank.

Whether you’re building a home PC, upgrading an office system, or creating a light gaming setup, this motherboard delivers great value and performance.
