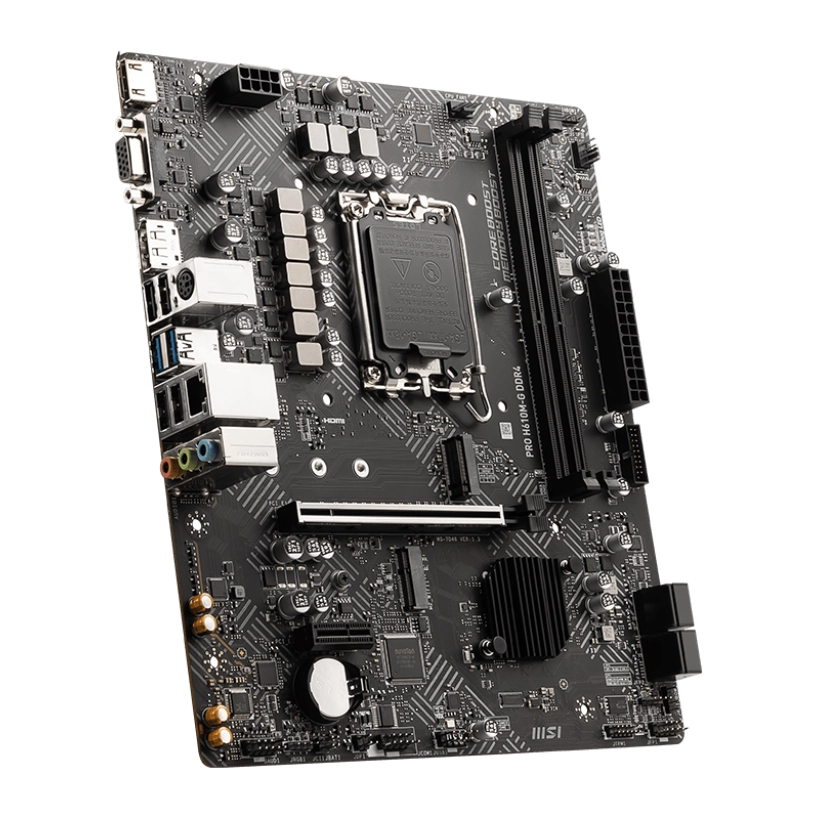

MSI PRO H610M-G, LGA1700, Supports Intel 14th/13th/12th Gen

The MSI PRO H610M-G motherboard is a cost-effective, compact solution for users seeking stable and efficient performance for their PC builds. Powered by the Intel H610 chipset, it supports Intel Core, Pentium Gold, and Celeron processors of the 14th, 13th, and 12th generations, making it suitable for a wide range of tasks, from productivity to light multitasking.

Equipped with Lightning Gen4 PCIe technology, it delivers up to 64GB/s bandwidth, ensuring quick data transfers for modern GPUs and storage. The motherboard features two DDR4 slots supporting up to 64GB of RAM, along with an M.2 slot and four SATA ports, offering flexibility in storage options. Core Boost technology ensures stable power delivery for multi-core processors, while Frozr AI Cooling dynamically manages fan speeds for optimal thermal performance.

With features like Audio Boost for enhanced sound quality, EZ Debug LEDs for troubleshooting, and versatile connectivity options, the MSI PRO H610M-G provides everything you need for a reliable, everyday computing experience.

Key Features

• Processor Compatibility: Supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• PCIe 4.0 Support: High-speed PCIe x16 slot for modern GPUs.
• M.2 SSD Support: One PCIe 3.0 x4 M.2 slot for fast storage solutions.
• Memory Support: Dual-channel DDR4 slots with speeds up to 3200MHz and a maximum capacity of 64GB.
• Onboard Graphics Outputs: HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), and VGA port.
• Enhanced Cooling: Frozr AI Cooling dynamically adjusts fan speeds based on CPU and GPU temperatures.
• Networking: Intel 1Gbps LAN for reliable wired internet connectivity.
• Audio Boost: Delivers immersive sound powered by Realtek ALC892/ALC897 codec.

MSI PRO H610M-G Specifications

• Brand: MSI
• Model: PRO H610M-G
• Socket Type: LGA1700
• Chipset: Intel H610
• Processor Compatibility: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
• Memory Support: 2 x DDR4 DIMM slots, up to 64GB, speeds up to 3200MHz.
• Graphics Outputs: HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), and VGA ports.
• Expansion Slots: 1 PCIe 4.0 x16 slot, 1 PCIe 3.0 x1 slot.
• Storage Interface: 1 PCIe 3.0 x4 M.2 slot, 4 SATA 6Gb/s ports.
• USB Ports: Rear – 2 x USB 3.2 Gen 1, 4 x USB 2.0; Internal – 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers.
• Networking: Intel I219V 1Gbps LAN.
• Audio: Realtek ALC892/ALC897 codec, 7.1-channel high-definition audio.
• Cooling Features: 1 CPU fan connector, 1 system fan connector, and Frozr AI Cooling.
• LED Features: 1 x RGB LED connector, 2 x 3-pin Rainbow LED connectors.
• Form Factor: Micro-ATX (24.4 cm x 21.1 cm).
• Operating System Support: Windows 11 64-bit.

Processor Compatibility

The MSI PRO H610M-G motherboard ensures smooth performance with its support for Intel processors across multiple generations.

Processor Recommendations for MSI PRO H610M-G

• For Budget Builds: Intel Core i3-12100.
• For Gaming: Intel Core i5-13400.

This motherboard is ready to handle diverse computing needs, from everyday tasks to moderate gaming and productivity, thanks to its LGA 1700 socket and Intel Turbo Boost Technology 2.0 support.

Discrete GPU Compatibility

The MSI PRO H610M-G motherboard features a PCIe 4.0 x16 slot, ensuring compatibility with modern GPUs. PCIe 4.0 offers double the bandwidth compared to PCIe 3.0, delivering faster data transfer rates and better graphics performance.

Compatibility Notes:

• PCIe 4.0 GPUs: Fully supported, making it ideal for GPUs like NVIDIA RTX 3060 and AMD RX 6700 XT.
• PCIe 3.0 GPUs: Compatible but may experience limited performance compared to PCIe 4.0-capable cards.

Graphics Card Recommendations for MSI PRO H610M-G

• For Entry-Level Gaming: NVIDIA GTX 1650. A budget-friendly option for 1080p gaming.
• For 1440p Gaming: AMD Radeon RX 6600. Great value with PCIe 4.0 support.

Memory Compatibility

The MSI PRO H610M-G motherboard is equipped with 2 DDR4 DIMM slots, supporting:

• Up to 64GB of total memory capacity.
• Memory speeds up to 3200MHz (non-overclocked).
• Intel XMP (Extreme Memory Profile) support for hassle-free memory tuning.

It’s perfect for users seeking stable, cost-effective RAM options without delving into overclocking.

Power Requirements and Cooling

The motherboard includes robust power delivery and cooling features:

Power Connectors

• 24-pin ATX main power connector for system stability.
• 8-pin CPU power connector to ensure consistent power for multi-core processors.

Cooling Features

• 1 CPU fan header to maintain processor thermals.
• 1 system fan header for chassis cooling.
• VRM Heatsinks: Effective heat dissipation for stable power delivery during intensive tasks.

Power Supply Recommendations for MSI PRO H610M-G

• 450W PSU: Ideal for systems with entry-level GPUs like GTX 1650.
• 650W PSU: For setups with mid-range GPUs like AMD RX 6600.

💡 Recommendation: Use the Cooler Master MWE 450 or Corsair CX650 for dependable power delivery.

Storage Options and Connectivity

The MSI PRO H610M-G motherboard offers flexible storage and connectivity options:

Storage

• 1 PCIe 4.0 M.2 slot for ultra-fast NVMe SSDs.
• 4 SATA III ports for HDDs or SSDs.

Connectivity

• USB Ports: Multiple USB 3.2 Gen 1 and USB 2.0 ports for peripherals.
• LAN: Reliable 1Gb Ethernet for seamless networking.
• Audio: High-quality 7.1-channel HD audio for an immersive experience.

Is This Motherboard Right for You?

The MSI PRO H610M-G is perfect for users looking for a reliable, cost-effective motherboard for home or office use. Its support for PCIe 4.0, high-speed M.2 storage, and DDR4 memory ensures it can handle modern workloads with ease.

If you’re building a budget-friendly PC with the latest Intel processors, the MSI PRO H610M-G is a great choice for stability, performance, and expandability.
