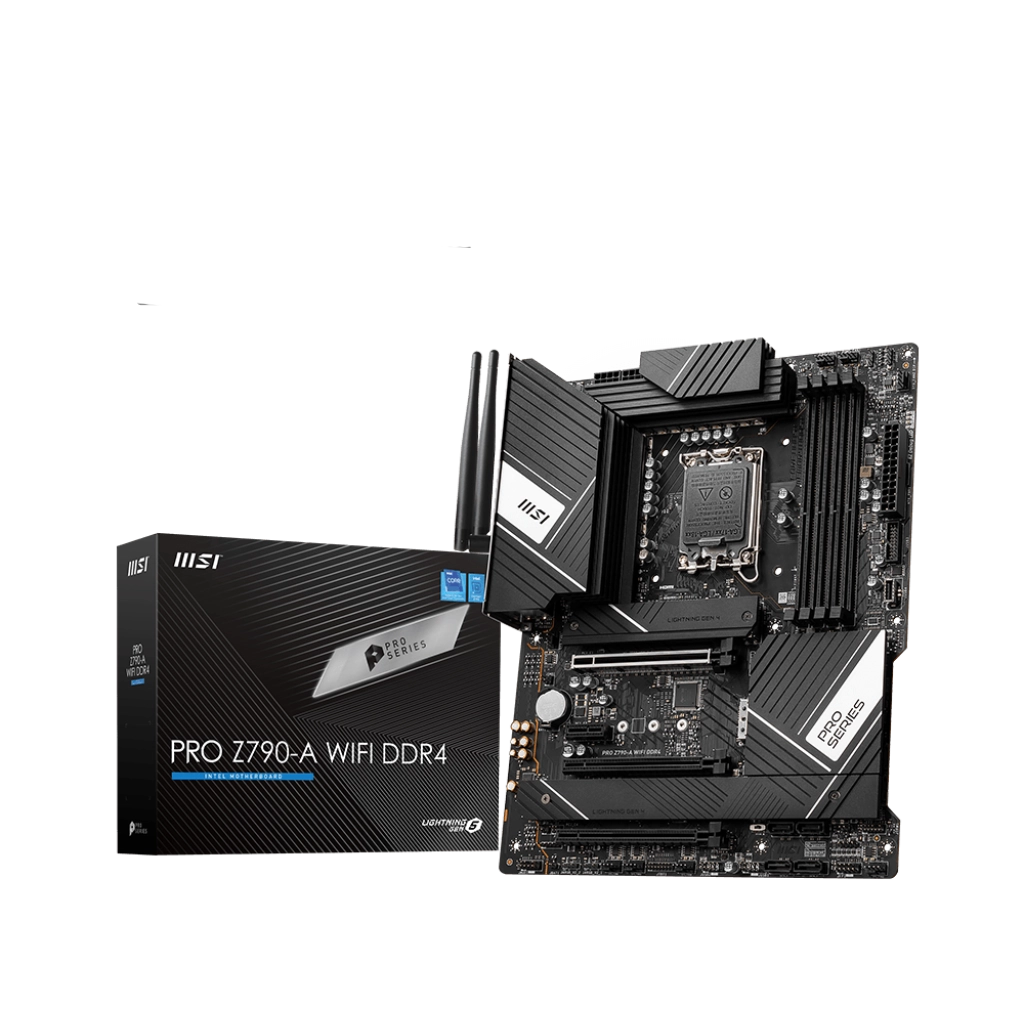

MSI PRO Z790-A WIFI, LGA1700, Intel 14th/13th/12th Gen Support, DDR4

The MSI PRO Z790-A WIFI DDR4 motherboard is designed to maximize performance and efficiency for gamers, creators, and professionals. Built on the Intel Z790 chipset, it supports Intel 14th, 13th, and 12th Gen processors, enabling powerful and stable multitasking for productivity and entertainment.

With DDR4 memory support and speeds up to 5333MHz (OC), this motherboard offers exceptional compatibility and overclocking performance. Featuring PCIe 5.0 x16 support, it is future-proof for next-gen GPUs, while four PCIe 4.0 M.2 slots with M.2 Shield FROZR deliver blazing-fast storage with excellent thermal protection. Wi-Fi 6E and Intel® 2.5G LAN provide seamless, high-speed networking for gaming and productivity, while Lightning USB 20G (USB 3.2 Gen 2×2 Type-C) ensures ultra-fast file transfers.

Key Features

• Supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron® processors.
• DDR4 memory compatibility with up to 128GB and speeds up to 5333MHz (OC).
• PCIe 5.0 x16 slot provides unmatched GPU bandwidth for gaming and rendering.
• Four PCIe 4.0 M.2 slots with M.2 Shield FROZR for ultra-fast and secure storage.
• Wi-Fi 6E and Intel® 2.5G LAN ensure high-speed and reliable network performance.
• Lightning USB 20G (USB 3.2 Gen 2×2 Type-C) delivers 20Gbps data transfer speeds.
• Extended Heatsink Design and 6-layer PCB with 2oz copper improve cooling and stability.
• Pre-installed I/O Shielding ensures better EMI protection and easier installation.
• Frozr AI Cooling automatically adjusts fan speeds based on CPU and GPU temperatures.
• EZ Debug LED simplifies troubleshooting during system setup.
• ATX form factor, ideal for high-performance gaming or professional builds.

MSI PRO Z790-A WIFI  Specifications

• Brand: MSI
• Model: PRO Z790-A WIFI DDR4
• Socket: LGA 1700
• Chipset: Intel Z790
• Memory Support: DDR4, up to 5333MHz (OC), 4 DIMM slots, maximum 128GB
• Graphics Outputs: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (8K@60Hz)
• Expansion Slots: 1 PCIe 5.0 x16 (from CPU), 1 PCIe 4.0 x4 (from chipset), 2 PCIe 3.0 x1 (from chipset)
• Storage: 4 PCIe 4.0 M.2 slots (up to 22110), 6 SATA 6Gb/s ports, RAID support for M.2 NVMe and SATA devices (RAID 0, 1, 5, and 10)
• Networking: Intel 2.5G LAN, Intel Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek ALC4080 Codec, 7.1-channel high-definition USB audio, supports S/PDIF out
• USB Ports (Rear): 2x USB 2.0, 2x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C
• USB Ports (Front): 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
• Cooling: 1 CPU fan header, 1 pump fan header, 6 system fan headers
• Power Requirements: 24-pin ATX power connector, 8-pin + 4-pin CPU power connectors
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: ATX (243.84mm x 304.8mm)

Processor Compatibility

The MSI PRO Z790-A WIFI DDR4 Motherboard is compatible with Intel processors ranging from the 12th Generation to the 14th Generation, utilizing the LGA 1700 socket. This motherboard is perfect for various applications, from everyday computing to professional workloads and gaming.

Supported Intel Generations

• 12th Gen (Alder Lake): The first generation to introduce hybrid architecture, enhancing multi-core performance.
• 13th Gen (Raptor Lake): Features improved P-cores and E-cores for greater performance efficiency.
• 14th Gen: The latest processors, offering cutting-edge technology for unmatched multitasking and gaming.

Processor Recommendations for MSI PRO Z790-A WIFI

• Intel Core i5-12400F: A solid choice for budget builds, offering excellent performance for 1080p gaming and everyday tasks.
• Intel Core i7-13700KF: A great option for gamers and content creators needing strong multi-threaded performance.
• Intel Core i9-14900K: The best choice for enthusiasts and professionals seeking top-tier performance for gaming and productivity.

Unleash the motherboard’s potential—pair it with an Intel processor for optimal performance!

Discrete GPU Compatibility

Equipped with PCIe 5.0 support, the MSI PRO Z790-A WIFI DDR4 motherboard offers double the bandwidth of PCIe 4.0, ensuring compatibility with the latest GPUs. Older PCIe 3.0 or 4.0 GPUs will still work seamlessly but won’t fully utilize the bandwidth offered by PCIe 5.0.

PCIe Compatibility Insights

• PCIe 5.0 GPUs: Fully compatible, delivering the fastest speeds and best performance.
• PCIe 4.0 GPUs: Perform well but won’t leverage PCIe 5.0’s full bandwidth.
• PCIe 3.0 GPUs: Compatible but may bottleneck in demanding applications due to reduced bandwidth.

Graphics Card Recommendations for MSI PRO Z790-A WIFI

• NVIDIA GeForce RTX 3060: A reliable option for 1080p gaming with PCIe 4.0 compatibility.
• AMD Radeon RX 6700 XT: Perfect for 1440p gaming with strong PCIe 4.0 performance.
• NVIDIA GeForce RTX 4080: Ideal for 4K gaming, offering cutting-edge ray tracing and PCIe 5.0 compatibility.

Boost your graphics performance—select a GPU to match your gaming or creative needs!

Memory Compatibility

The MSI PRO Z790-A WIFI DDR4 motherboard supports the tried-and-tested DDR4 memory standard, ensuring stable performance and reliability. While DDR4 doesn’t offer the extreme speeds of DDR5, it provides better affordability and broad compatibility.

Key Memory Features

• Four DDR4 DIMM Slots: Supports up to 128GB total memory capacity.
• Supported Speeds: Native speeds up to 3200 MHz, with overclocking up to 5333 MHz (O.C.).
• Dual-Channel Memory Architecture: Offers enhanced data transfer and multitasking.
• Intel XMP 3.0 Support: Simplifies memory overclocking for optimized performance.

Note on Overclocking: Memory performance depends on module quality and effective cooling to maintain stability.

Power Requirements and Cooling

The MSI PRO Z790-A WIFI DDR4 motherboard ensures stable and efficient power delivery, equipped with robust power connectors and advanced cooling headers to keep your system cool under pressure.

Power Connectors

• 24-Pin ATX Power Connector: Ensures stable motherboard operation.
• 8+4-Pin EPS CPU Power Connectors: Delivers reliable power to high-performance processors, even under overclocked conditions.

Cooling and Fan Headers

• 1x CPU Fan Header: For air or liquid cooling solutions.
• 1x Pump Fan Header: Optimized for AIO or custom water cooling.
• 4x System Fan Headers: Provides flexibility for case airflow optimization.
• VRM Cooling: Large heatsinks cover the power delivery area, maintaining stable temperatures during intense workloads or overclocking.

Power Supply Recommendations for MSI PRO Z790-A WIFI

• 650W PSU: Ideal for mid-range builds with GPUs like the RTX 3060.
• 750W PSU: A great match for builds using GPUs such as the RX 6700 XT.
• 850W PSU or Higher: Recommended for high-performance systems featuring GPUs like the RTX 4080.

Ensure stable power and optimal cooling—select the right PSU and cooling solution for your build!

Is This Motherboard for You?

The MSI PRO Z790-A WIFI DDR4 is an excellent choice for gamers, creators, and professionals looking for high-end features in a reliable ATX motherboard.

With DDR4 support, PCIe 5.0, Wi-Fi 6E, and four M.2 slots, this motherboard delivers exceptional performance and future-proofing for any high-performance PC build.
