The MSI B550M PRO VDH WIFI is an excellent Micro-ATX motherboard offering advanced features such as PCIe 4.0, Wi-Fi AC, and support for the latest AMD Ryzen™ processors. Designed for users looking to build a compact, yet powerful PC, this board provides excellent value for home office, gaming, and general productivity builds.
With an affordable price point of around PHP 6,800 (~$120 USD) for refurbished or used units, it’s a versatile option for budget-conscious builders.
Key Features and Specifications
- Socket: AMD AM4
- Chipset: AMD B550
- Memory Channels: Dual-channel
- DIMM Slots: 4 slots, supporting up to 128GB of DDR4 RAM
- PCI-E Slots: 1x PCIe 4.0/3.0 x16 slot (for GPUs), 2x PCIe 3.0 x1 slots (for additional peripherals)
- Storage: 4 SATAIII ports (6Gbps) for HDDs/SSDs, 2 M.2 slots (PCIe 4.0 and PCIe 3.0 support)
- Wi-Fi: Dual-band Wi-Fi AC and Bluetooth 4.2
- Networking: Realtek® 8111HN Gigabit LAN
- USB Ports: Front: 1 USB 3.2 Gen 1 Type-C, 2 USB 3.2 Gen 1 Type-A, 4 USB 2.0
- Rear: 4 USB 3.2 Gen 1 Type-A, 2 USB 2.0
- Audio: Realtek® ALC892/ALC897 Codec with 7.1-channel HD audio
- Graphics: 1x VGA port, 1x HDMI 2.1 port (supports 4K @ 60Hz), 1x DisplayPort (supports 4K @ 60Hz)
- Form Factor: Micro-ATX (24.4 cm x 24.4 cm)
Compatibility and Performance
CPU Compatibility
The MSI B550M PRO-VDH WIFI is a versatile motherboard that supports a broad range of AMD Ryzen™ processors, offering excellent compatibility for both gaming and productivity tasks. It accommodates the high-performance Ryzen 5000 series, ensuring top-tier performance for gamers, content creators, and power users. Additionally, it supports the Ryzen 3000 series, providing a cost-effective solution for budget-conscious users looking for solid performance at a more affordable price point.
For users who rely on integrated graphics, the board is also compatible with Ryzen 4000 G-Series processors, which come with built-in Radeon Vega graphics. This flexibility makes it a strong choice for various builds, from gaming rigs to home offices, and it also offers future-proofing potential for upgrades.
Recommended Processors:
For Gaming and High-Performance Tasks
AMD Ryzen 5 5600X (without integrated graphics) – This 6-core, 12-thread CPU delivers excellent performance for gaming and multitasking. Pairing it with a good GPU ensures smooth gameplay and fast application load times.
AMD Ryzen 7 5800X (without integrated graphics) – An 8-core, 16-thread CPU perfect for gaming, content creation, and intensive multitasking. Ideal for those who want high-performance computing without breaking the bank.
For Budget Builds with Integrated Graphics
AMD Ryzen 5 4600G (with integrated Radeon Vega graphics) – A solid 6-core option for budget gaming and multitasking without needing a discrete GPU.
AMD Ryzen 7 5700G (with integrated Radeon Vega graphics) – This 8-core CPU offers decent graphics performance for light gaming and everyday tasks, making it great for those who don’t need a dedicated GPU.
Memory Compatibility
Equipped with 4 DIMM slots and support for up to 128GB of DDR4 RAM, the MSI B550M PRO-VDH WIFI ensures that your system can handle heavy multitasking, gaming, and professional applications like video editing and 3D rendering. It supports memory speeds up to 4400 MHz through A-XMP OC Mode, allowing users to overclock their RAM for improved system performance.
This high-speed memory support is ideal for gamers who want faster load times and responsiveness, as well as professionals working with memory-intensive applications. Whether you’re looking for basic multitasking or high-performance computing, this motherboard provides the flexibility to configure your RAM for your needs.
Graphics Compatibility
The MSI B550M PRO-VDH WIFI offers excellent PCIe 4.0 support, enabling faster data transfer rates and improved bandwidth for the latest GPUs. This makes it a future-proof choice for users planning to pair the board with next-generation graphics cards, ensuring high performance in gaming and GPU-intensive tasks like video editing and 3D modeling.
The board’s PCIe x16 slot is compatible with NVIDIA’s RTX 30-series and AMD’s RX 6000-series GPUs, allowing for a wide range of powerful discrete graphics options. Additionally, the motherboard supports integrated graphics from AMD Ryzen 4000 G-Series processors, providing an option for users who don’t require a dedicated GPU but still need a capable system for everyday tasks and light gaming.
Recommended Graphics Cards:
For High-End Gaming
NVIDIA GeForce RTX 3070 – Ideal for high-refresh-rate gaming at 1440p or 4K resolution. It also offers excellent ray-tracing performance, making it a great match for gamers and content creators.
AMD Radeon RX 6800 – A powerful GPU capable of 1440p and 4K gaming, it competes with NVIDIA’s 3070 while offering solid performance in modern titles and productivity tasks.
For Mid-Range Gaming:
NVIDIA GeForce RTX 3060 – A great option for 1080p or 1440p gaming with ray tracing support and DLSS. This is perfect for gamers looking to balance price and performance.
AMD Radeon RX 6600 XT – Known for strong 1080p performance, this card is ideal for gamers on a budget who want to enjoy smooth gameplay without compromising too much on graphics quality.
For Budget and Casual Gaming:
NVIDIA GeForce GTX 1660 Super – Ideal for 1080p gaming at high settings, offering excellent value for budget-conscious gamers.
AMD Radeon RX 5500 XT – A great budget-friendly card for 1080p gaming that delivers solid performance without the need for heavy investment.
Storage Options For MSI B550M PRO VDH WIFI
The B550M PRO-VDH WIFI excels in storage, offering a flexible combination of 2 M.2 slots and 4 SATA III ports:
- M.2_1 slot: Supports PCIe 4.0 x4, perfect for ultra-fast NVMe SSDs.
- M.2_2 slot: Uses PCIe 3.0 x4 for additional NVMe SSDs.
- 4 SATA III ports ensure traditional HDDs or SSDs are well-supported, offering ample room for storage expansion.
This motherboard also supports RAID 0, 1, and 10 configurations for both SATA and M.2 storage, giving users the option to enhance data performance or redundancy.
MSI B550M PRO VDH Expansion and Connectivity
PCIe and Expansion Slots
The B550M PRO-VDH WIFI comes with:
- 1 PCIe 4.0/3.0 x16 slot, perfect for high-end GPUs.
- 2 PCIe 3.0 x1 slots for additional peripherals like network cards, sound cards, or other expansion devices.
These slots provide enough flexibility for moderate expansion, making it a solid choice for users who want a compact system with plenty of upgrade options.
USB and Connectivity
With both front and rear USB ports, this board provides ample connectivity:
- Front panel: 1 USB 3.2 Gen 1 Type-C, 2 USB 3.2 Gen 1 Type-A, 4 USB 2.0.
- Rear panel: 4 USB 3.2 Gen 1 Type-A, 2 USB 2.0.
This configuration is ideal for users needing high-speed USB for external storage, printers, or peripherals. Additionally, the Flash BIOS button allows for easy BIOS updates without the need for a CPU or GPU installed.
Audio and Networking
Audio
The Realtek ALC892/ALC897 Codec provides 7.1-channel HD audio, ensuring good sound quality for gaming, entertainment, and video calls. It’s more than sufficient for most users, though audiophiles may want to opt for an external DAC or sound card for enhanced audio clarity.
Networking
The B550M PRO-VDH WIFI includes both Gigabit LAN and Wi-Fi AC capabilities, ensuring fast and stable connections whether you prefer wired or wireless setups. With dual-band Wi-Fi and Bluetooth 4.2, the board is ready for modern wireless networking needs.
Power, Cooling, and Overclocking
Although the MSI B550M PRO-VDH WIFI is not designed for extreme overclocking, it provides sufficient power and cooling options for moderate overclocking. The board includes:
- 1 CPU fan header
- 1 water-pump header
- 3 system fan headers
These headers ensure that users can maintain good airflow and cooling performance, even in smaller cases, making it suitable for mid-range builds with entry-level liquid cooling or air cooling setups.
Pricing and Availability
The MSI B550M PRO-VDH WIFI is available at around PHP 6,800 for refurbished units, making it one of the most affordable motherboards with PCIe 4.0 and Wi-Fi capabilities.
This price point ensures excellent value for users looking to build a budget-to-mid-range PC without sacrificing essential features like high-speed storage and wireless connectivity.
Pros and Cons
Pros
- Affordable price: Great value for users on a budget.
- PCIe 4.0 support: Future-proofs your build for faster GPUs and NVMe storage.
- Wi-Fi AC and Bluetooth 4.2: Built-in wireless connectivity is a major plus.
- M.2 and SATA storage: Dual M.2 slots and RAID support offer plenty of storage flexibility.
- Rich USB connectivity: Includes modern USB 3.2 Gen 1 Type-C ports for fast data transfer.
Cons
- No support for older Ryzen APUs: Does not support Ryzen 5 3400G or Ryzen 3 3200G processors.
- Limited overclocking capabilities: Not intended for heavy overclocking enthusiasts.
- Basic audio solution: The onboard audio may not satisfy audiophiles without additional enhancements.
Who Should Buy the MSI B550M PRO VDH WIFI?
The MSI B550M PRO-VDH WIFI is a great fit for:
- Budget-conscious builders who want to utilize PCIe 4.0 and modern connectivity options at a reasonable price.
- Home office users or general productivity builds requiring fast wireless connectivity.
- First-time builders who need a compact, reliable motherboard that offers plenty of storage and USB options without over-complicating the setup.

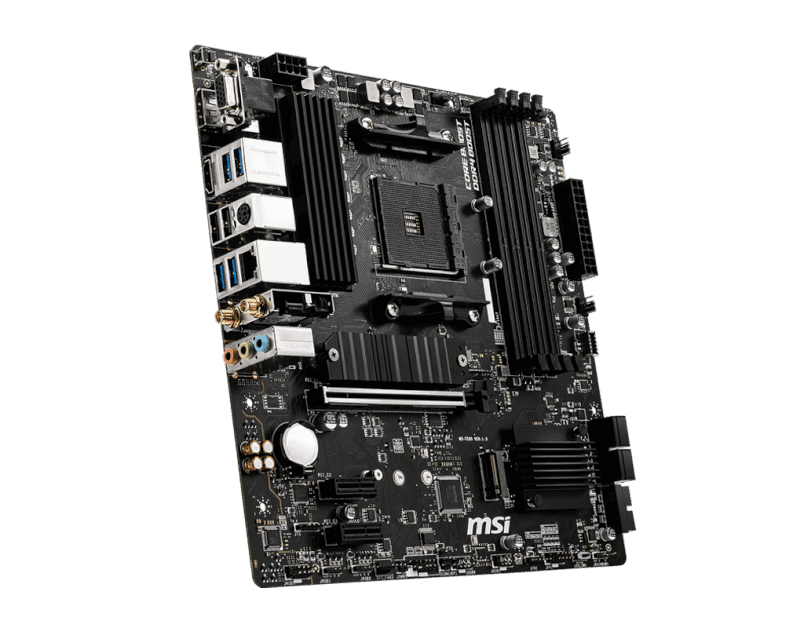

Video: MSI B550M PRO VDH WIFI Motherboard Overview
The MSI B550M PRO VDH WIFI motherboard is a top choice for gamers and PC enthusiasts seeking a reliable, high-performance platform for their AMD Ryzen processors. Supporting the latest PCIe 4.0 technology, this board ensures lightning-fast transfer speeds and smooth gameplay, while its built-in Wi-Fi module guarantees seamless network connectivity.
With excellent expandability through an M.2 slot, USB 3.2 Gen 2 ports, and multiple PCIe slots, it’s perfect for adding graphics cards and other peripherals to enhance your gaming setup. Additionally, MSI’s core boost technology optimizes power delivery to the CPU, ensuring stable and efficient performance, making it ideal for both casual gamers and hardcore enthusiasts.
Final Verdict
The MSI B550M PRO-VDH WIFI is a solid Micro-ATX motherboard offering great value for budget and mid-range builds. It brings together essential features like PCIe 4.0, Wi-Fi AC, dual M.2 slots, and ample USB connectivity in a compact form factor.
Whether you’re building a gaming rig, a home office system, or just need a capable all-rounder, this motherboard offers everything you need to get started with a powerful yet affordable PC build.
How to Download Drivers & BIOS on MSI B550M PRO VDH WIFI
To download the latest drivers and BIOS for the MSI B550M PRO-VDH WIFI visit the official MSI Support page. Search for your motherboard model and select your operating system (e.g., Windows 10 or Windows 11 64-bit) under the Drivers & Downloads section. Download essential drivers such as chipset, LAN, and audio.
For a BIOS update, download the latest BIOS version, save the file to a FAT32-formatted USB drive, and restart your PC. Enter BIOS by pressing the Delete key and navigate to M-Flash. Select the BIOS file from the USB drive and follow the on-screen instructions to complete the update. Ensure the PC remains powered on throughout the process, as the system will reboot automatically once the update is complete.
Visit the MSI Support page now to download the necessary drivers and BIOS updates.
