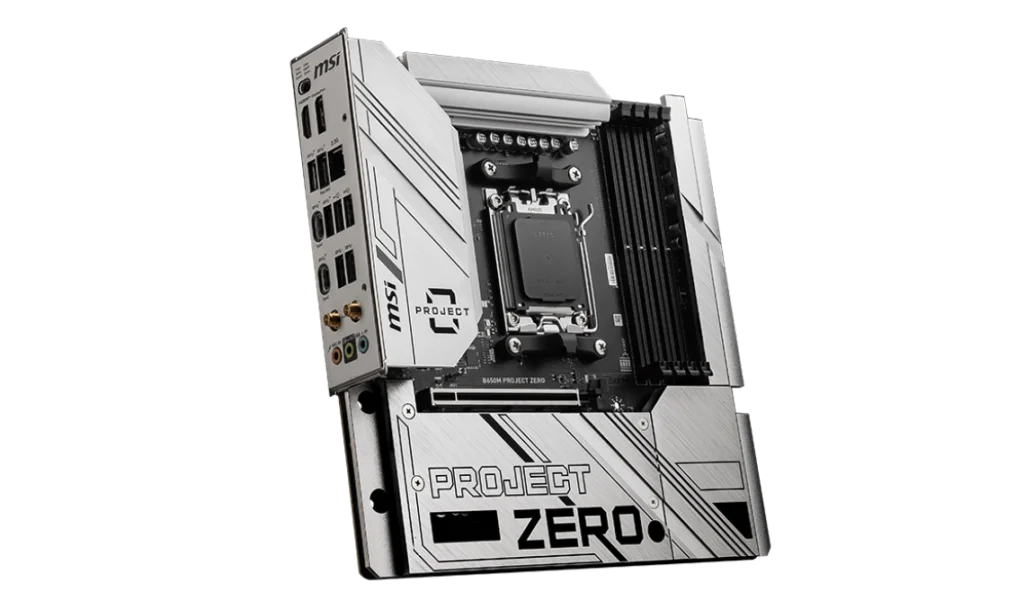

The MSI B650M PROJECT ZERO is a stylish and high-performance micro-ATX motherboard that brings next-gen connectivity and power to users looking to build a modern, space-efficient gaming rig or content creation setup.
Built with the AMD B650 chipset, it supports Ryzen 7000, 8000, and 9000 series processors and DDR5 memory, ensuring top-notch performance and future-proofing. It’s packed with premium features like Wi-Fi 6E, USB 20Gbps, and robust storage options, making it a standout choice in the compact motherboard segment.
MSI B650M PROJECT ZERO Key Features
- Motherboard Model: MSI B650M PROJECT ZERO
- Socket: AM5
- Chipset: AMD B650
- Memory Support: DDR5 4x DIMM slots, up to 256GB , supporting overclocked speeds up to 7600MHz+ (OC)
- PCI-E Slots:
- 1x PCIe 4.0 x16 (from CPU) for powerful GPUs
- 1x PCIe 3.0 x1 (from chipset) for additional expansion cards
- Storage Options: 2x M.2 PCIe 4.0 slots, 4x SATA 6G ports
- USB Ports:
- Rear: 2x USB 2.0, 2x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C
- Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
- Audio: Realtek® ALC897 codec, 7.1-channel HD audio, 32-Bit/384kHz playback on front panel
- Video Output: 1x HDMI 2.1 (4K @ 60Hz), 1x DisplayPort 1.4 (4K @ 60Hz)
- LAN: Realtek® RTL8125BG 2.5Gbps LAN
- Wireless: Wi-Fi 6E and Bluetooth 5.3
- Form Factor: micro-ATX (243.84mm x 243.84mm)
Compatibility and Performance
CPU Compatibility
The MSI B650M PROJECT ZERO supports AMD Ryzen 7000, 8000, and 9000 series processors, offering exceptional power and compatibility with AMD’s latest AM5 socket.
Whether you’re building a system for gaming, streaming, or content creation, this board is equipped to handle everything from high-end gaming workloads to intensive productivity tasks, ensuring it remains relevant for years to come.
Memory Compatibility
With 4 DIMM slots, this board supports up to 256GB of DDR5 memory with overclocked speeds up to 7600MHz+ (OC), providing ample headroom for even the most memory-intensive tasks.
Whether you’re gaming, editing video, or running heavy applications, the support for DDR5 ensures you get the best performance in terms of speed and responsiveness.
Graphics Compatibility
The MSI B650M PROJECT ZERO includes 1x PCIe 4.0 x16 slot, perfect for pairing with high-performance GPUs. Whether you’re using a mid-tier or high-end GPU, this board can handle even the most demanding games and graphical workloads.
For users relying on integrated graphics, the board also features HDMI 2.1 and DisplayPort 1.4 outputs, supporting 4K at 60Hz, which is ideal for multi-monitor setups or streaming.
Storage and Expansion
The board offers 2x M.2 PCIe 4.0 slots for high-speed NVMe SSDs and 4x SATA 6G ports, making it ideal for those who need both speed and storage capacity.
It supports RAID 0, 1, and 10 for both SATA and NVMe storage devices, though note that the SATA_A1_A2 ports don’t support RAID, which may be limiting for users seeking more advanced RAID configurations.
Power and Cooling
The MSI B650M PROJECT ZERO is designed to offer efficient power delivery with its B650 chipset, making it perfect for users who want stable performance without diving into extreme overclocking. It features 1x CPU fan header, 1x pump fan header, and 3x system fan headers, ensuring solid cooling support for moderate to high-performance systems.
Additionally, the Wi-Fi 6E and Bluetooth 5.3 support allow for fast wireless connections, making it a great choice for gamers and creators who require reliable, high-speed networking.
Pricing and Availability
Price in the Philippines: PHP 13,500 (~USD 240)
At PHP 13,500, the MSI B650M PROJECT ZERO offers an impressive array of features, especially considering its compact micro-ATX form factor.
With support for DDR5 memory, PCIe 4.0, Wi-Fi 6E, and advanced storage options, this motherboard is an excellent choice for users looking to build a powerful system at a reasonable price.
Pros and Cons
Pros
- Compact Design: Ideal for smaller builds without sacrificing performance or connectivity.
- Future-Proof: Supports DDR5 memory, PCIe 4.0, and the latest Ryzen 7000/8000/9000 series processors.
- Wi-Fi 6E and Bluetooth 5.3: Ensures high-speed wireless connectivity for modern setups.
- High-Speed USB Ports: Includes USB 20Gbps Type-C, providing blazing fast data transfers.
- Ample Storage Options: 2x M.2 slots and 4x SATA ports offer flexibility for both NVMe and SATA storage.
- Stylish and Clean Layout: The PROJECT ZERO design hides cables, making for a clean, minimalist build.
Cons
- No PCIe 5.0: While PCIe 4.0 is sufficient for current GPUs, the lack of PCIe 5.0 could be a limiting factor for future upgrades.
- Mid-Tier Audio: The Realtek ALC897 codec is decent but not premium, which may disappoint audiophiles or users seeking the highest quality audio performance.
- Limited RAID Support: Not all SATA ports support RAID, which could be limiting for users with more complex RAID setups.
Who Should Use the MSI B650M PROJECT ZERO?
The MSI B650M PROJECT ZERO is perfect for gamers, content creators, and PC builders looking for a compact yet powerful platform with modern connectivity and future-proof features. Its micro-ATX design is ideal for smaller builds, but it doesn’t compromise on performance or features. Whether you’re looking to build a gaming rig, a creative workstation, or a modern home office PC, the PROJECT ZERO delivers exceptional value for users who want a neat, efficient build with advanced features like Wi-Fi 6E, DDR5 memory, and high-speed USB 20Gbps Type-C ports.
Final Verdict
The MSI B650M PROJECT ZERO is a fantastic choice for users who need a compact, powerful, and stylish motherboard that can handle next-gen components and high-performance tasks. With support for Ryzen 7000/8000/9000 series processors, DDR5 memory, and a host of modern connectivity options, this board provides excellent value for both gamers and content creators.
At PHP 13,500 (~USD 240), it’s a top contender for anyone looking to build a mid-range to high-end system in a micro-ATX form factor.
How to Download MSI B650M PROJECT ZERO Driver and BIOS Update
To download the latest drivers and BIOS for the MSI B650M PROJECT ZERO, visit the official MSI Support page. Search for your motherboard model and select your operating system (e.g., Windows 10 or Windows 11 64-bit) under the Drivers & Downloads section. Download essential drivers such as chipset, LAN, and audio to ensure optimal functionality of your system.
Steps for a BIOS Update
- Download the latest BIOS version from the MSI Support page.
- Save the file to a FAT32-formatted USB drive.
- Restart your PC and press the Delete key during startup to access the BIOS menu.
- Navigate to the M-Flash utility.
- Select the BIOS file from the USB drive and follow the on-screen instructions to complete the update.
⚠️ Important: Ensure the PC remains powered on throughout the update process. The system will reboot automatically once the update is completed.
Visit the official MSI Support page to keep your MSI B650M PROJECT ZERO drivers and BIOS up to date, ensuring smooth and reliable performance for your PC build.
